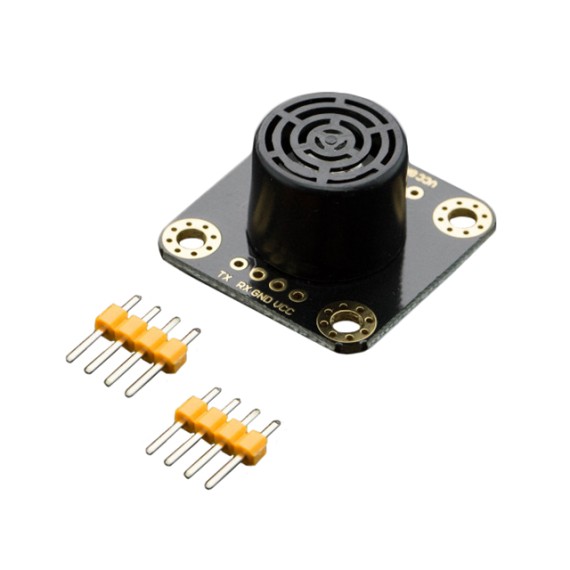

Fermion URM07 - Energy-Efficient Ultrasonic Distance Sensor Breakout (20~750cm, UART)

Κωδικός:

25-00016296

Part Number: SEN0153

ΚατασκευαστήςDFRobot Part NumberSEN0153

Εξαντλημένο

€18⁶⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

An ultrasonic sensor measures distance by calculating the time difference between sending a signal and receiving an echo from an object. It uses echolocation to measure distances, just like a bat.

The URM07 is an ultra low-power sensor. The effective range is up to 7.5m, and it has a wide range power supply of 3.0 - 5.5V. It is directly compatible with 3.3V or 5V devices such as Arduino, Raspberry Pi. etc. The average operating current is only 5mA and standby current is only 14uA. According to the principle of ultrasound sensors, the accuracy of the distance value will be affected by the air temperature and wind direction, so using a DFRobot URM07 built-in temperature sensor, you can read the ambient temperature, and automatically calculate temperature compensation. The sensor uses an integrated ultrasonic probe with a detection angle of approximately 60° in a compact and lightweight unit. The unit uses a 2.54mm pitch 4Pin interface, using UART communication, compatible with most common microcontrollers.

URM07 Detecting Angle
URM07 UART ultrasonic distance sensors have undertaken rigorous road testing and optimization. We guarantee that this sensor has first-class response speed, ultra high stability, the highest sensitivity and ultra low power consumption. If you have harsh environmental requirements for your sensor performance in your design, the URM07 is definitely the best choice.

Operating Voltage: 3.0 ~ 5.5V DC
I/O Operating Mode: Open Drain (OD), integrated pull-up resistor
Effective Range: 20 ~ 750 cm
Direction Angle: 60 °
Standby Current: <14 uA (mainly by the power chip consumption, the core circuit consumption <1uA)
Peak Current: <9 mA
Average Current: <5 mA (measured under continuous measurement, for reference only)
Distance Resolution: 1cm
Distance Error: 1%

Operating Temperature Range: -10 ~ 70 ℃
Temperature Error: ± 1 ℃
Operating Humidity Range: RH <75%
Acoustic Frequency: 38 ~ 42KHz
Boot Start Time: <20ms
Measurement Period: <60ms
Dimension: 27x27mm
Weight: 4.2g Approx.
