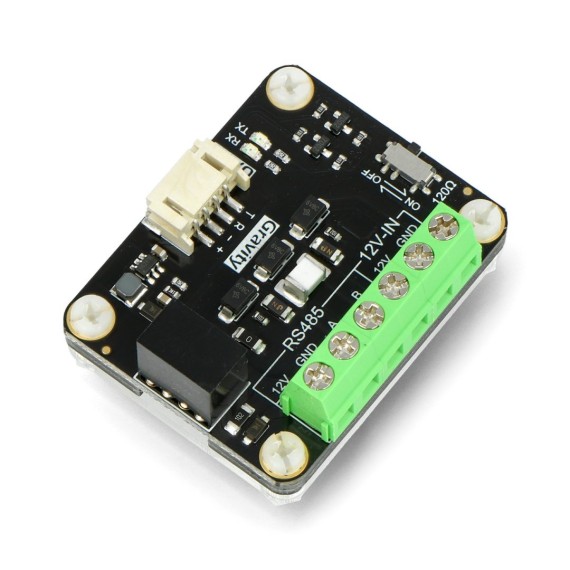

Gravity Active Isolated RS485 to UART Signal Adapter Module

από DFROBOT
This active,   isolated RS485 to UART signal transfer module   comes with protection circuits such as power isolation and TVS. Compatible with most...
25-00016274
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0845
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
24.80
Χωρίς ΦΠΑ 20.00
+

ΠΕΡΙΓΡΑΦΗ

This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS.

Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety, etc.

It can be applied to various industrial sensors, industrial control equipment or applications that require RS485 signal conversion.

Board Overview

Connect with Arduino Board

Connection Diagram (Use serial port to read sensor data)

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0845
Σύνδεση:
  • UART (Serial TTL)
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power Supply Voltage: 3.3~5V
  • Communication baud rate up to 1M bps
  • Up to 12V-2W power output (output current is about 160mA)
  • Isolation voltage 3000 VDC
  • Bus electrostatic protection capacity is up to 15kV
  • 1/8 unit load, bus load capacity up to 256 nodes
  • Bus fail protection and bus drive short circuit protection
  • Operating temperature range: -40℃ to +105℃

ΔΥΝΑΤΟΤΗΤΕΣ

  • Fast communication speed
  • Stable and reliable performance
  • High safety

Applications

  • Industrial sensors
  • Industrial control equipment
  • Applications that require RS485 signal conversion
