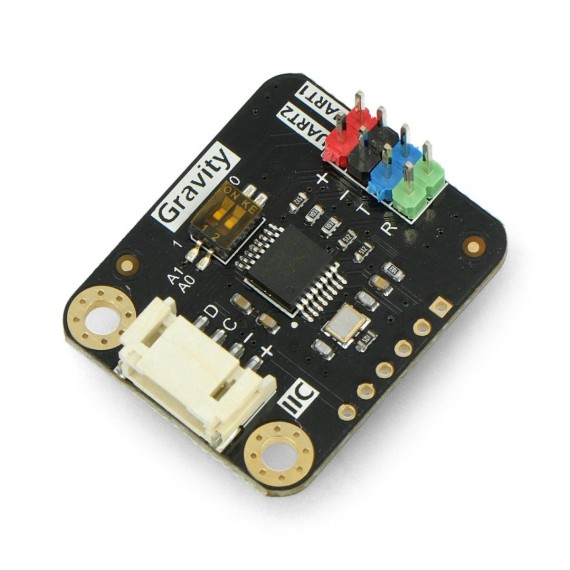

Gravity I2C to Dual UART Module

από DFROBOT
This I2C to Dual UART module offers data transmission rate up to 1Mbps, and each sub UART has independent 256-byte FIFO hardware buffer for transmitting...
25-00016275
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0627
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+

ΠΕΡΙΓΡΑΦΗ

This I2C to Dual UART module offers data transmission rate up to 1Mbps, and each sub UART has independent 256-byte FIFO hardware buffer for transmitting and receiving. The baud rate, word length, and check format of every sub UART can be set independently. The module provides 2Mbps maximum communication rate. At most four such modules can be connected onto one controller board to expand 8 hardware serial ports. This I2C to dual UART module can be extremely suitable for using with IoT module, Ultrasonic ranging module and GPS module.

There are usually only 1 or 2 UARTs on Controller boards like Arduino, Raspberry Pi, micro:bit, etc. And one of them must be used in program downloading or debugging. When your application needs to connect several UART devices, you may find that there are not enough UARTs on main-board for connecting. Thus, this module could be a perfect solution for the above situation, or you can use this product in IR receiver module and WS2818 RGB relevant projects with strict timing requirements.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0627
Σύνδεση:
  • I2C
  • UART (Serial TTL)
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 3.3V~5.5 V
  • Operating Current: <3mA
  • Communication Port: Gravity-I2C 4Pin
  • Expanded UART: 2
  • Operating Temperature Range: -40℃~85℃
  • Dimension: 32.5x27mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • I2C to dual UART
  • Up to 2Mbps communication rate
  • Expand 8 hardware serials at most
  • Sub UART receive/transmit independently
  • Independent setting for band rate and word length of Sub UART

Applications

  • Internet of Things Module
  • Ultrasonic Ranging Module
  • GPS Module
  • Speech Synthesis Module
