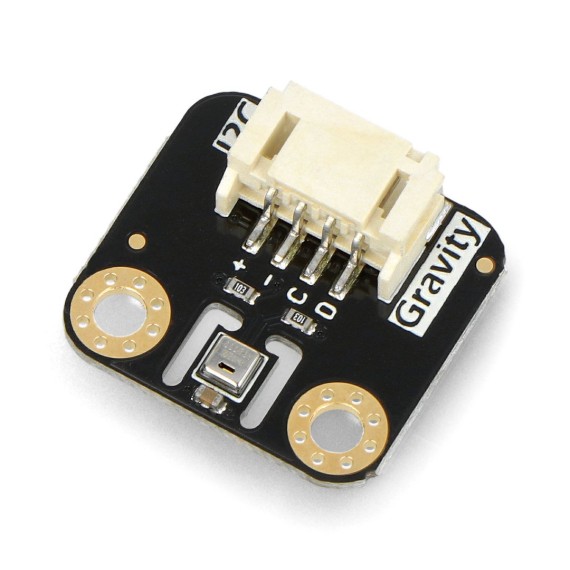

Gravity AHT20 Temperature and Humidity Sensor

από DFROBOT
The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity...
25-00016205
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0528
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
5.80
Χωρίς ΦΠΑ 4.68
+

ΠΕΡΙΓΡΑΦΗ

The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features standard I2C interface and a wide voltage supply of 2V-5V. And with the simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40℃ ~ +85℃.

This sensor can be widely used for measuring the environmental temperature and humidity of home electronic equipment, the temperature and humidity of automobiles, and so on.

Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0528
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Θερμοκρασίας
  • Υγρασίας
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Module Parameters
    • Operating Voltage: DC2V-5V
    • Output Signal: I2C
    • I2C Address: 0x38
    • Dimension: 30x20.5mm
  • AHT20 Chip Parameters
    • Relative Humidity
      • Resolution: 0.024 %RH
      • Accuracy Error: ±2 %RH
      • Repeatability: ±0.1 %RH
      • Hysteresis: ±1 %RH
      • Non-linear: ±0.1 %RH
      • Response Time: 8S
      • Operating Range: 0~100 %RH
      • Long-term Drift: <0.5 %RH/yr
    • Temperature
      • Resolution: 0.01℃
      • Accuracy Error: ±0.3℃
      • Repeatability: ±0.1℃
      • Hysteresis: ±0.1℃
      • Response Time: minimum 5S, maximum 30S
      • Operating Range: -40℃~85℃
      • Long-term Drift: <0.04℃/yr

ΔΥΝΑΤΟΤΗΤΕΣ

  • Digital output, I2C interface
  • Excellent long-term stability
  • Fast response, strong anti-interference, and adaptability
  • Gravity interface, simple wiring, no soldering required

Applications

  • HVAC
  • Dehumidifier
  • Testing Equipment
  • Consumer Appliances
  • Automobiles
  • Automatic Control
  • Data Loggers
  • Weather Control
