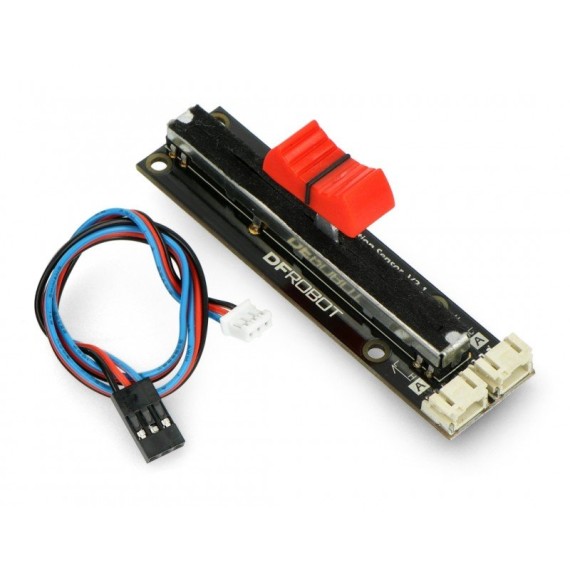

Gravity Analog Slide Position (Potentiometer) Sensor

25-00016171
DFR0053
CompanyDFRobot Part NumberDFR0053
Out of Stock
This product will be back in stock on Friday, 13 December 2024
730
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

This arduino Slide Position Sensor is based on straight-slip slide potentiometer sensor. The sensor is able to give provide the position of the slider which is often considered as a linear potentiometer .

The sensor includes two analog outputs to allow the user to average the values and minimize random sensor fluctuations.

To ease the difficult of using this sensor, a Gravity Interface is adapted to allow plug&play. The IO Sensor Shield is the best match for this sound senor connecting to your.

What is potentiometer?

"A potentiometer is an instrument for measuring the potential (voltage) in a circuit. A fraction of a known voltage from a resistive slide wire is compared with an unknown voltage by means of a galvanometer. The sliding contact or wiper of the potentiometer is adjusted and the galvanometer briefly connected between the sliding contact and the unknown voltage. The deflection of the galvanometer is observed and the sliding tap adjusted until the galvanometer no longer deflects from zero. At that point the galvanometer draws no current from the unknown source, and the magnitude of voltage can be calculated from the position of the sliding contact."

A slide potentiometer is commonly seen in music mixer.

  • Voltage: +5V
  • Interface Type: Analog
  • 5.4kΩ resistance value
  • High quality connectors

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
DFRobot
G. Weight
0.07kg
Resistance
5.4K Ω
Kind of potentiometer
Slider
