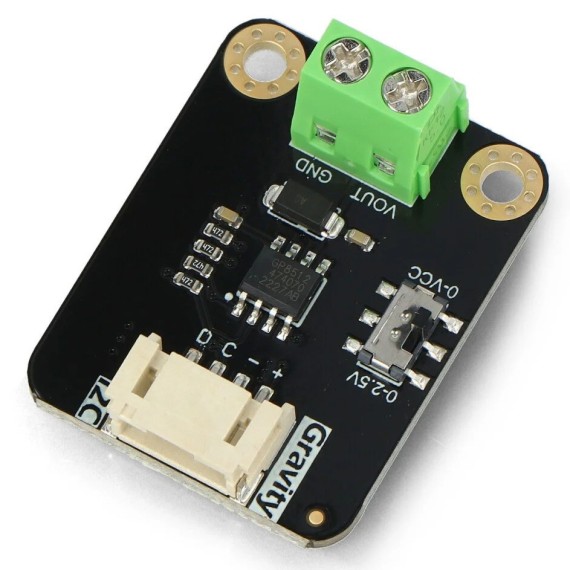

Gravity GP8512 I2C to 0-2.5V/VCC DAC Module - 1-CH 15-bit, 2 image

Gravity GP8512 I2C to 0-2.5V/VCC DAC Module - 1-CH 15-bit

Κωδικός:

25-00016926

Part Number: DFR1035

ΚατασκευαστήςDFRobot Part NumberDFR1035

Διαθέσιμο

Αποστολή σε 24 ώρες

€18⁶⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This is a 1-channel analog voltage output DAC module with I2C communication, 15-bit resolution, and 0.01% precision. It is well-suited for control projects operating within the 3.3V range, such as ESP32, Raspberry Pi, STM32, and other microcontrollers that require analog signal output. The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy, such as fine speed control or angle control.

Features

Support 3.3V-5V power supply.
Output voltage error is less than 0.01%.
Output voltage linearity error is 0.01%.
Two channels of voltage output, either 0-2.5V or 0-VCC, enabling connection and control of standard analog voltage devices.
Gravity interface, I2C communication, Arduino control, suitable for program automation control.
The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy.

Applications

Orchestrates automatic control of motor rotational speed
Facilitates the automatic modulation of volume
Governs temperature through automatic control mechanisms
Commands the automatic control of indoor and outdoor illumination
Functions as an apparatus for laboratory testing equipment

Package contents

GP8512: 1-Channel 15bit I2C to 0-2.5V/VCC DAC Module ×1
Gravity-4P I2C/UART Sensor Cable ×1

Selection Guide

Module	Gravity GP8503 I2C to 0-2.5V/VCC DAC Module - 2-CH 12-bit	Gravity GP8501 PWM to 0-2.5V/VCC DAC Module - 2-CH	Gravity GP8512 I2C to 0-2.5V/VCC DAC Module - 1-CH 15-bit	Gravity GP8403 I2C to 0-5V/10V DAC Module - 2-CH 12-bit	Gravity GP8413 I2C to 0-5V/10V DAC Module - 2-CH 15-bit	Gravity GP8211S I2C to 0-5V/10V DAC Module - 1-CH 15-bit	Gravity GP8101S PWM to 0-5V/10V DAC Module - 1-CH	Gravity GP8302 I2C to 4-20mA DAC Module - 1-CH 12-bit
SKU	DFR1034	DFR1037	DFR1035	DFR0971	DFR1073	DFR1071	DFR1036	DFR0972
Chip	GP8503	GP8501	GP8512	GP8403	GP8413	GP8211S	GP8101S	GP8302
Input	I2C	PWM	I2C	I2C	I2C	I2C	PWM	I2C
Output	0-2.5V/VCC	0-2.5V/VCC	0-2.5V/VCC	0-5V/10V	0-5V/10V	0-5V/10V	0-5V/10V	0-25mA
Channels	2	2	1	2	2	1	1	1
Resolution	12bit	8bit	15bit	12bit	15bit	15bit	8bit	12bit
Linearity error	0.10%	0.10%	0.01%	0.10%	0.01%	0.01%	0.10%	0.10%
