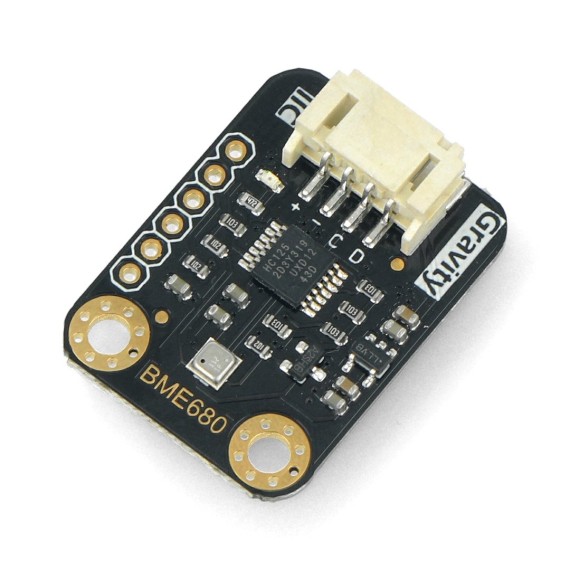

Gravity I2C BME680 Environmental Sensor

Κωδικός:

25-00016211

Part Number: SEN0248

ΚατασκευαστήςDFRobot Part NumberSEN0248

Διαθέσιμο

Αποστολή σε 24 ώρες

€23⁴⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

DFRobot BME680 Environmental Sensor is a low power gas, pressure, temperature & humidity sensor based on BOSCH BME680 sensor. It is a 4-in-1 multi-functional MEMS environmental sensor which integrates VOC (Volatile Organic Compounds) sensor, temperature sensor, humidity sensor and barometer.

With DFRobot Gravity BME680 Environmental Sensor, you can monitor 4 environmental parameters simultaneously at the most. It is designed for air quality monitor, and due to the MEMS technology, BME680 has a small size and low power consumption. It can be widely used in environmental monitoring, home automation and control, Internet of Things (IoT) wearable device, GPS enhancement, etc.

DFRobot Gravity BME680 environmental sensor provides a Gravity I2C connector, plug & play, easy to connect. With onboard voltage regulator IC and level translator IC, DFRobot Gravity BME680 environmental sensor shows good compatibility. It can be directly connected to 3.3V and 5V systems. Moreover, there is also a SPI connector in reserve for further expansion projects.

With the development of industrialization, air pollution is getting worse and worse. Toxic chemical odors are even common with new furniture. These invisible killers are destroying your health day by day. You do need to concern about your health as soon as possible and DFRobot Gravity BME680 environmental sensor can help make an air quality monitor. DFRobot Gravity BME680, take good care of your health!

ΣΗΜΕΙΩΣΕΙΣ

The IAQ(In-Door-Quality) calculation function is only supported on FireBeetle ESP8266 Microcontroller.

Input Voltage: 3.3V~5.0V
Operating Current: 5mA (25mA in VOC)
Wiring Connector: Gravity I2C
Connector in Reserve: SPI
Temperature Measurement Range: -40℃~+85℃
Temperature Measurement Precision: ±1.0℃(0~65℃)
Humidity Measurement Range: 0-100%r.H.
Humidity Measurement Precision: ±3%r.H.(20-80% r.H.,25℃)
Atmospheric Pressure Measurement Range: 300-1100hPa
Atmospheric Pressure Measurement Precision: ±0.6hPa(300-1100hPa,0~65℃)
IAQ (Indoor Air Quality) Range: 0~500 (the larger the worse)
Module Size: 30x22mm

MEMS sensor, small size, low power consumption, high reliability
Wide voltage input, compatible with 3.3V and 5V controller
Highly integrated environmental sensor: temperature, humidity, barometer and VOC, four-in-one environmental parameter monitoring
Gravity I2C connector, plug and play, while reserving XH2.54 SPI connector for expansion
Small size and easy to install

Applications
