Gravity I2C High Temperature Sensor (K-Type, 800℃)

Κωδικός:

25-00016216

Part Number: DFR0558

ΚατασκευαστήςDFRobot Part NumberDFR0558

Διαθέσιμο

Αποστολή σε 24 ώρες

€29⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

PT100 is suitable for most of the temperature measurement below 400°C, but usually the temperature of the household natural gas stove can reach over 800°C, and the temperature of the pottery kiln or high-power electric furnace can be more than 1000°C. The K-type thermocouple are commonly used in such ultra-high temperature scenes.

The digital K-type high temperature sensor consists of a signal amplification conversion module and a stainless steel sheathed K-type thermocouple probe. When the K-type thermocouple probe is placed near a high-temperature heat source, the probe generates a small voltage proportional to the temperature due to the thermoelectric effect. The module uses a MAX31855K dedicated chip to amplify this small voltage, convert it to digital signals, and compensate accordingly. The temperature readings can be read through Gravity I2C interface. The module can measure extremely wide temperature ranging from -270°C to 1372°C, the error from -200°C to 700°C is within ±2°C, and the error from 700°C to 1350°C is within ±4°C. The attached K-type thermocouple can measure up to 800 °C with error within ± 2.5°C.

Measuring the flame Temperature of a natural gas stove

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

1x Signal Amplification Conversion Module
1x Armored K-Type Thermocouple Probe
1x Gravity-4P I2C/ UART Sensor Wire

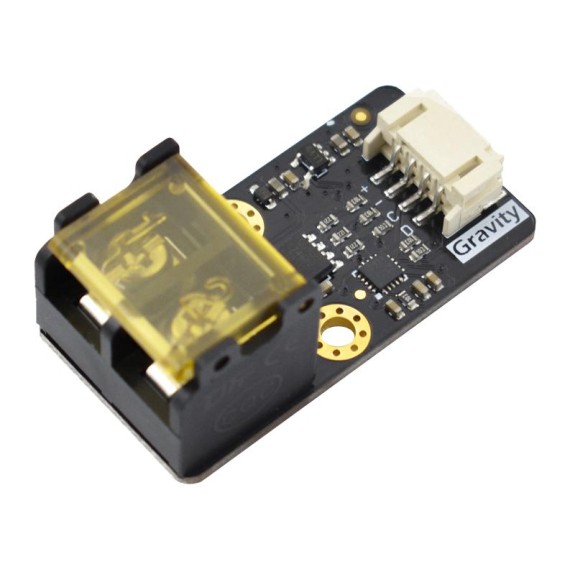

Signal Amplification Conversion Module
- Input Voltage (VCC): 3.3V~5.5V
- Probe: K Type Thermocouple
- Temperature Range: -270°C~1372°C
- Resolution: 0.25 °C
- Error: within ≤ ±2°C(-200°C~700°C) ~ ±4°C(700°C~1350°C)
- Interfaces: Gravity I2C (Logic Level 0-3.3V)
- Dimension: 44x22mm

Armored K-Type Thermocouple Probe
- Temperature Range: up to 800 °C
- Error: ≤ ±2.5°C
- Wire Length: 1.5m
- Probe Length: 50mm
- Probe Diameter: Φ4mm
- Features: Waterproof, Corrosion Resistant (Weak Acid or Alkali Resistant, Rustproof), High Temperature Resistance
