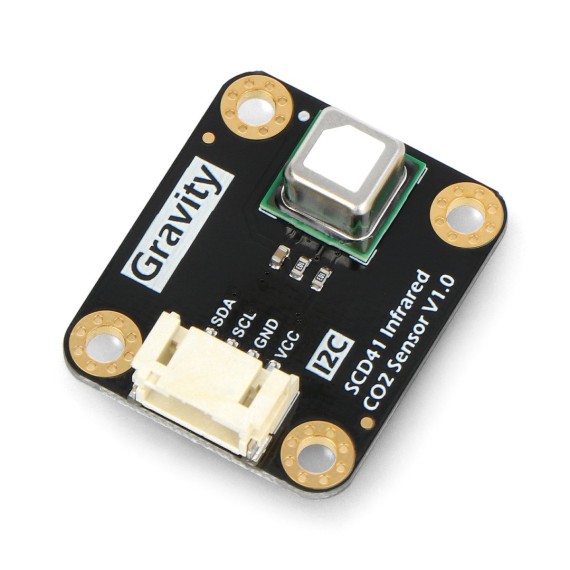

Gravity I2C SCD41 Infrared CO2 Sensor (400 - 5000 ppm)

από DFROBOT
CO2 is a key factor for indoor air quality as high levels compromise human cognitive performance and well-being. This Gravity: SCD41 CO2 sensor is...
25-00016144
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0536
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
74.90
Χωρίς ΦΠΑ 60.40
+

ΠΕΡΙΓΡΑΦΗ

CO2 is a key factor for indoor air quality as high levels compromise human cognitive performance and well-being.

This Gravity: SCD41 CO2 sensor is based on the SCD41 miniature CO2 sensor from Sensirion. SCD41 builds on the photoacoustic NDIR sensing principle and Sensirion’s patented PAsens® and CMOSens® technology to offer high accuracy at an unmatched price and the smallest form factor. On-chip signal compensation is realized with the built-in temperature and humidity sensor, while temperature and humidity data outputs are also available.

SCD41 sensor detects the amount of energy that is absorbed by CO2 molecules. When pulsing the infrared emitter, CO2 molecules absorb infrared light periodically. This causes additional molecular vibration resulting in a pressure wave inside the measurement chamber. The higher the CO2 concentration, the more light is absorbed, and thus the greater the amplitude of this acoustic wave becomes. A microphone inside the gas chamber measures this, from which the CO2 concentration can then be calculated.

Click to learn more about PAsens® technology.

Click to learn more about NDIR sensors.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0536
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
  • Υπερύθρων
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
4mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power Supply: 3.3V to 5V
  • Average Operating Current: <4mA
  • I2C Address: 0x62
  • Product Size: 32x27x8mm
  • CO2
    • Accuracy: ±(40 ppm + 5% MV)
    • Measuring Range: 400 - 5000 ppm
    • Response Time: 60s
  • Humidity
    • Typical Relative Humidity Accuracy: 6%RH
    • Relative Humidity Measuring Range: 0 to 95%RH
    • Response Time: 120s
  • Temperature
    • Typical Temperature Accuracy: 0.8℃
    • Temperature Measuring Range: -10 to 60℃
    • Response Time: 120s

ΔΥΝΑΤΟΤΗΤΕΣ

  • CO2, temperature, and humidity, three in one
  • Small size of 32x27x8mm
  • Low power, average current<4mA
  • Applications:
    • Indoor CO2 concentration monitoring
    • Ambient monitoring in greenhouse
    • Smart ventilation systems
