Gravity UART Infrared CO2 Sensor (0-50000ppm)

by DFROBOT
DFRobot released its latest wide range Arduino infrared CO2 sensor, which effective range is up to 0~50000ppm. This sensor is based on non-dispersive...
25-00022099
Gross Weight: 0kg
Company: DFROBOT
Part Number: SEN0220
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
104.90
Without VAT 84.60
+
WISHLIST COMPARE

DESCRIPTION

DFRobot released its latest wide range Arduino infrared CO2 sensor, which effective range is up to 0~50000ppm. This sensor is based on non-dispersive infrared (NDIR) technology and has good selectivity and oxygen-free dependency. It integrates temperature compensation and support UART communication mode. Most importantly, the product is easy to use; it is compatible with all types of microcontrollers with UART port, like Arduino, Raspberry Pi and other microcontrollers. Besides, it has a long service life, up to 5 years!

In addition, this UART Infrared CO2 Sensor is a high-performance sensor that combines technology of mature infrared absorption gas detection with precision optical circuit design as well as sophisticated circuit design. It has characteristics such as wide range detection, high sensitivity, high resolution, low power consumption, fast response, anti-water vapor interference, no poisoning, high stability and long life.

It can be widely used in HVAC refrigeration and indoor air quality monitoring, industrial process and safety monitoring, agricultural and animal husbandry production process monitoring, etc..

LCD Keypad Shield with UART Infrared CO2 Sensor

This is a 0~50000ppm wide range CO2 sensor with UART communication port. It supports Arduino, Raspberry Pi and other microcontrollers. In addition, we also have a 0~5000 ppm high precision infrared sensor with Gravity Analog interface, more easy to use: Gravity Analog Infrared CO2 Sensor (0~5000ppm).

Arduino Connection Diagram



THE PACKAGE INCLUDES

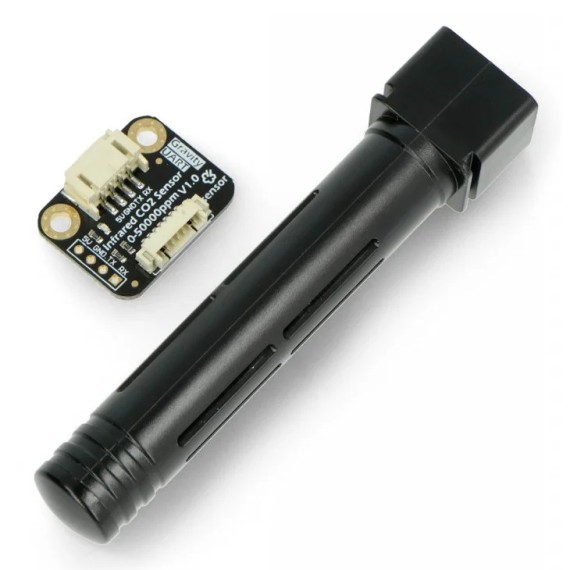

  • 1x UART Infrared CO2 Sensor Probe (0-50000ppm)
  • 1x Sensor Converter Board
  • 1x 6-Pin Sensor Cable
  • 1x PH2.0 Gravity UART Cable
  • 1x XH2.54 4-Pin header

SPECIFICATIONS

Sensor Type:
  • Gas
Typical Input Voltage:
  • 5VDC
Oparating Current:
85mA
Interface:
  • Digital
Communication Protocol:
  • UART

SPECIFICATIONS

  • Gas Detection: Carbon Dioxide (CO2)
  • Operating Voltage: 4.5 - 5.5V DC
  • Average Current: <85mA
  • Output Signal: UART/PWM/Analog output (the last two has not been developed)
  • Measuring Range: 0 - 50000ppm
  • Accuracy: ± (50ppm + 5% reading)
  • Preheating Time: 3min
  • Response Time: T90 < 30s
  • Operating Temperature: 0 - 50 ℃
  • Operating Humidity: 0 - 95% RH (no condensation)
  • Service Life: >5 years
  • Board Dimension : 21x27.11mm
  • Weight: 42g

FEATURES

  • High sensitivity High resolution
  • Low power consumption
  • Excellent stability
  • Temperature compensation
  • Excellent linear output
  • High cycle life
  • Anti-water vapor interference
  • No poisoning
  • Need 5V power supply, even you are using a 3.3V microcontroller, like Genuino 101/ Raspberry Pi .etc.
