Gravity Waterproof DS18B20 Sensor Kit

by DFROBOT
This waterproof temperature sensor kit use  DS18B20  probe AS . It contains a probe with a  resistor module . So it is easy to connect on the...
25-00016103
Company: DFROBOT
Part Number: KIT0021
Made in: China
Out of Stock
Product out of stock
No stock in retail store
10.00
Without VAT 8.06

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

This waterproof temperature sensor kit use DS18B20 probe AS . It contains a probe with a resistor module. So it is easy to connect on the Arduino board

The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.

Check 27 Pcs Sensor Kit for Arduino to get more sensors for Arduino.

If you want to make a simple water purifier, we recommend buying together with Gravity: Analog TDS Sensor/Meter for Arduino.

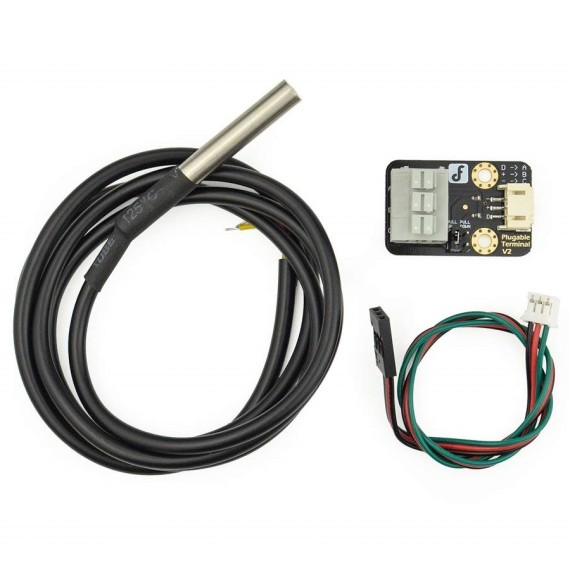

THE PACKAGE INCLUDES

  • 1x Waterproof DS18B20 Digital temperature sensor
  • 1x Terminal sensor adapter
  • 1x Digital sensor cable

Arduino Connection Diagram

SPECIFICATIONS

Sensor Type:
  • Temperature
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Digital
Communication Protocol:
  • Dallas 1-Wire

SPECIFICATIONS

  • Operating voltage: 3.0~ 5.5V
  • ±0.5°C Accuracy from -10°C to +85°C
  • Usable temperature range: -55 to 125°C (-67°F to +257°F)
  • 9 to 12 bit selectable resolution
  • Uses 1-Wire interface- requires only one digital pin for communication
  • Unique 64 bit ID burned into chip
  • Multiple sensors can share one pin
  • Temperature-limit alarm system
  • Query time is less than 750ms
  • Stainless steel tube 6mm diameter by 35mm long
  • Cable diameter: 4mm
  • Length: 90cm
  • 3 wires interface:
    • Type A
      • Red wire - VCC
      • Black wire - GND
      • Yellow wire - DATA
    • Type B
      • Red wire - VCC
      • Yellow wire - GND
      • Green wire - DATA
