Grove Αισθητήρας CO2 Υγρασίας & Θερμοκρασίας (SCD30) - 3-σε-1

Κωδικός:

32-00018332

Part Number: 101020634

ΚατασκευαστήςSeeed Studio Part Number101020634

Εξαντλημένο

€79⁹⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The Grove - SCD30 is a 3-in-1 Arduino sensor that can measure CO2, temperature, and humidity. Based on Sensirion SCD30, it is a Non-Dispersive Infrared(NDIR) carbon dioxide sensor with high precision and wide measurement accuracy which can reach ±(30 ppm + 3%) between 400ppm to 10'000ppm. It would be a perfect choice if you are not looking for a simple Arduino temperature sensor or a CO2 sensor, but a multifunctional sensor for your Arduino weather station or other environmental projects.We've released the Seeed Gas Sensor Selection Guide and the Grove Selection Guide, it will help you choose the Grove that best suits your needs.

Embedded with Sensirion SCD30, The Grove - SCD30 integrates Non-Dispersive Infrared(NDIR) measurement technology for CO2 detection. It also has Sensirion humidity and temperature sensors on the same sensor module.

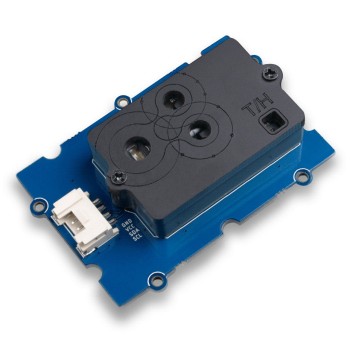

You can see that there is a monkey face graphic on the module, actually, this is a carbon dioxide molecular model. As you can see, the 4 valence electrons on each oxygen atom and also the covalent bonds between the carbon and oxygen atoms are clearly shown.

Here is a lewis structure of the CO2 molecule:

CO2 Sensor Specifications
- CO2 measurement range: 0 - 40'000 ppm
- Accuracy: ± (30 ppm + 3% MV) (25 °C, 400 - 10'000 ppm)
- Repeatability: 10 ppm
- Temperature stability: 2.5 ppm / °C (0-50 °C)
- Response time (t63): 20 s
Humidity Sensor Specifications
- Relative humidity measurement range: 0 - 100 % RH
- Typ accuracy: ±3% RH (0-100% RH)
- Repeatability: 0.1% RH
- Response time (t63): 8 s
Temperature Sensor Specifications
- Temperature measurement range: -40 °C - 70 °C
- Typ accuracy (°C): ± (0.4 °C + 0.023 x (T [°C] - 25°C))
- Repeatability (°C): 0.1 °C
- Response time (t63): >10 s
Electrical Specifications
- Supply voltage: 3.3 - 5.5 V
- Average current @ 2s measurement rate: 19 mA
- Max. current: 75 mA
Dimensions: 61x42x19mm

NDIR CO2 sensor technology: embedded with Sensirion SCD30
Multi-function: Integrates temperature and humidity sensor on the same sensor module
High precision and wide measurement accuracy: ±(30 ppm + 3%) between 400ppm to 10'000ppm
Superior stability: Dual-channel detection for
Easy project operation: Digital interface I2C, Breadboard-friendly, Grove compatible
Best performance-to-price ratio

Application Ideas
