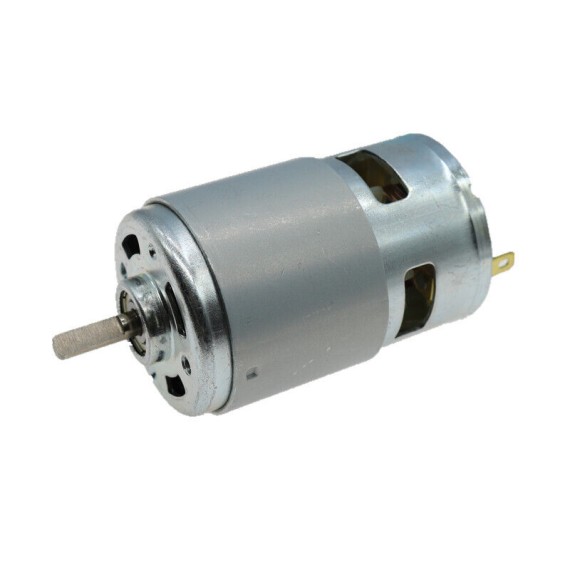

High Torque Motor 12V DC 775 - 6000RPM

19-00016275
775-6000RPM
ΚατασκευαστήςOem Part Number775-6000RPM
Εξαντλημένο
€780
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€6.24
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

775 DC motor Electric drill motor High torque 12V 6000RPM.

Ball bearing, with cooling fan.

This is the front end of the motor ball bearing, copper sets of back-end, 5 groups winding, at a voltage of 12V, large torque, low noise.

Used in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.



ΣΗΜΕΙΩΣΕΙΣ

  • Motor shakes or revolves not smoothly after power-on. This is due to insufficient power supply. It is recommended to replace the larger power adapter.

  • Rated voltage: 12
  • No-load speed: 6000 / min
  • Load current: 2.65A
  • No-load starting current: 5 consecutive mean about 7.2A
  • Stall (Stall) Current: ~ 50A
  • Maximum load power: 150W
  • Stall power: ~ 775w
  • Cooling fan: Yes
  • Shaft Diameter: Approx. 5 mm
  • Shaft length: Approx. 17 mm
  • Body length: Approx. 66.7 mm
  • Body diameter: Approx. 42 mm
  • Motor Overall Length: Approx. 98 mm
  • Diagonal installation pitch: Approx. 28.8 mm
  • Mounting hole size: M4
  • Mounting hole: 2

  • Double ball bearings at both front and rear.
  • Large torque, high speed.
  • Low starting current, stable and efficient.
  • Metal outer case, anti-rust and durable.
  • Operating voltage is DC 12V.
Κατασκευαστής
Oem
Part Number
775-6000RPM
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.1kg
Διάμετρος Κινητήρα
42mm
Voltage (Range)
12 Volt
Current (Stall)
50Α
Ταχύτητα
6000 RPM
Gearmotor Style
Spindle
Encoder
Όχι
