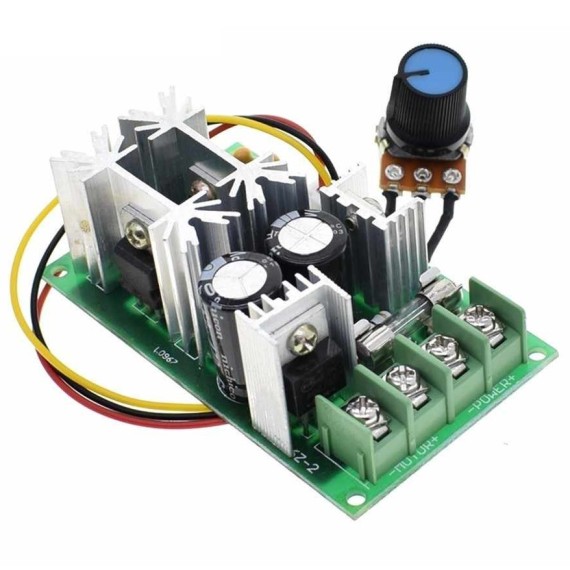

DC Motor PWM Speed Controller 10-60V 20A

by OEM
Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current...
19-00019823
Gross Weight: 0.08kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
7.90
Without VAT 6.37

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. This engine speed control switch can control the engine speed from 0%-100%. It is widely used in industrial production. Comes with a button to control the speed of the motor. Easy to handle!


NOTES

  • Must be connected to the load to adjust the speed.
  • With the protection of the reverse connection of the power supply, protection against overvoltage, ceramic fuse of Fast Fusion 20A.
  • It can be controlled directly with PLC voltage.
  • The potentiometer and terminals may differ in color and material.
  • The choice is random. Thanks for understanding.

SPECIFICATIONS

Driver Type:
  • DC Motor
Max. Current per Channel:
20A

SPECIFICATIONS

  • Working Voltage: DC 10V - 60V
  • Control Power: 0.01-1200W
  • Static Current: 0.010A (Standby)
  • Rated Current: 15A
  • Max.Current: 20A
  • PWM Duty Cycle: 0% -100%
  • PWM Frequency: 25 KHz
  • Control Voltage: 0-5V
    • Potentiometer kind: Single turn
    • Resistance: 10kΩ
    • Power: 125mW
    • Mounting: On cable
    • Characteristics: Linear
    • Body material: Metal
    • Mechanical rotation angle: 300°
    • Max. operating voltage: 200V
  • Material: Plastic, metal
  • Module Size: 77x45x29mm
