High Torque Motor 24V DC 775 - 10000RPM

19-00090211
ΚατασκευαστήςOem
Διαθέσιμο
Αποστολή σε 24 ώρες
€780
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€6.24
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

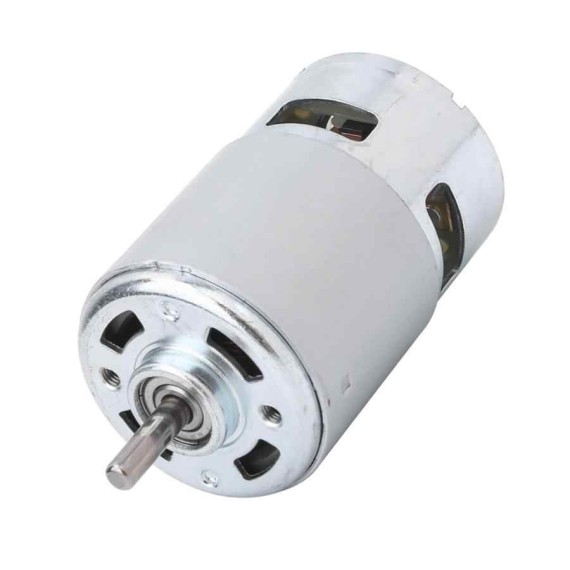

775 DC motor Electric drill motor High torque 24V 10000RPM.

Ball bearing, with cooling fan.

This is the front end of the motor ball bearing, copper sets of back-end, 5 groups winding, at a voltage of 24V, large torque, low noise.

Used in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.



ΣΗΜΕΙΩΣΕΙΣ

  • Motor shakes or revolves not smoothly after power-on. This is due to insufficient power supply. It is recommended to replace the larger power adapter.

  • Rated voltage: 24
  • No-load speed: 10.000 / min
  • Load current: 3.5A
  • No-load starting current: 5 consecutive mean about 7.2A
  • Stall (Stall) Current: ~ 34A
  • Maximum load power: 150W
  • Stall power: ~ 775w
  • Cooling fan: Yes
  • Shaft Diameter: Approx. 5 mm
  • Shaft length: Approx. 17 mm
  • Body length: Approx. 66.7 mm
  • Body diameter: Approx. 42 mm
  • Motor Overall Length: Approx. 98 mm
  • Diagonal installation pitch: Approx. 28.8 mm
  • Mounting hole size: M4
  • Mounting hole: 2

  • Double ball bearings at both front and rear.
  • Large torque, high speed.
  • Low starting current, stable and efficient.
  • Metal outer case, anti-rust and durable.
  • Operating voltage is DC 24V.
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
Oem
Μικτό Βάρος
0.001kg
Διάμετρος Κινητήρα
42mm
Voltage (Range)
24 Volt
Current (Stall)
34A
Ταχύτητα
10000 RPM
Gearmotor Style
Spindle
Encoder
Όχι
