Humidity Sensor DHT11 Module

by OEM
This board is a breakout board for the DHT11 sensor and gives a digital output that is proportional to temperature and humidity measured by the sensor....
19-00010108
Gross Weight: 0kg
Company: OEM
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Out of Stock
Product out of stock
Low stock in store
2.20
Without VAT 1.77

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

This board is a breakout board for the DHT11 sensor and gives a digital output that is proportional to temperature and humidity measured by the sensor. Technology used to produce the DHT11 sensor grants high reliability, excellent long-term stability and very fast response time.

SPECIFICATIONS

Sensor Type:
  • Humidity
  • Temperature
Typical Input Voltage:
  • 3VDC
  • 3.3VDC
  • 5VDC
Oparating Current:
2.5mA
Interface:
  • Digital
Communication Protocol:
  • Single Wire

NOTES

  • This version is comes on a board includes the resistor 4.7Kohm.

SPECIFICATIONS

  • Supply voltage +5V
  • Supply current (running) 0.5mA typ. (2.5mA max.)
  • Supply current (stand-by) 100uA typ. (150uA max.)
  • Temperature range 0 / +50°C ±2°C
  • Humidity range 20-90%RH ±5%RH
  • Interface Digital

Διαστάσεις

  • Board: 21.9 x 16.6 x 7mm
  • Pitch of pins: 0.1"/2.54mm

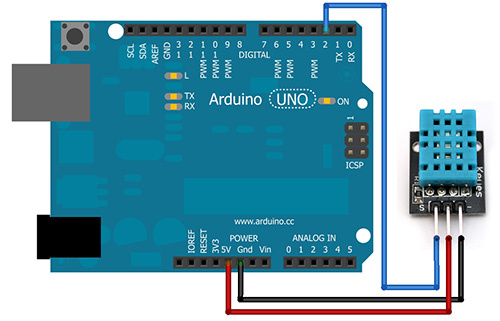

Συνδεσμολογία
