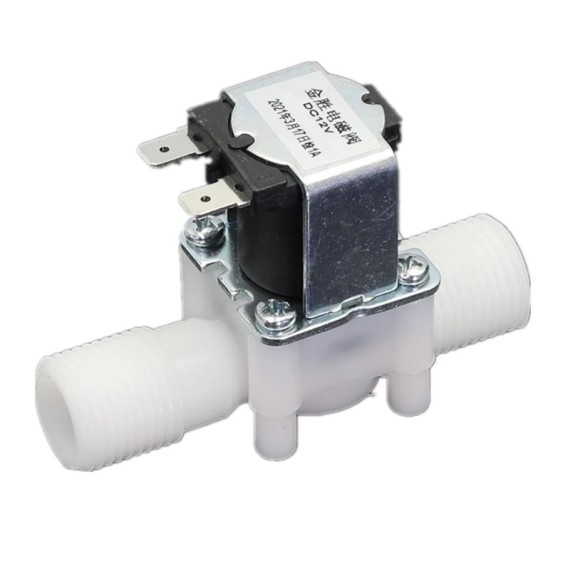

12V Solenoid Valve - 1/2"

The 12V solenoid controlled fluid valve. Simply connect a fluid source to the 1/2" threaded inlet and it will interrupt the flow until 12V is applied to the fast-on connectors on the solenoid.
19-00014562
Gross Weight: 0.12kg
Made in: China
In Stock
Ships in 24 Hours
Available in store
7.90
Without VAT 6.37
+
WISHLIST COMPARE

DESCRIPTION

Have you ever wanted to control the flow of a liquid using your computer or microcontroller, but didn't know how? Well, here's how: The 12V solenoid controlled fluid valve. Simply connect a fluid source to the 1/2" threaded inlet and it will interrupt the flow until 12V is applied to the fast-on connectors on the solenoid.

Specifications:

  • Inlet valve (Working water pressure: 0.02~0.8MPa)
  • Drain valve (Working water pressure: 0~0.02MPa)
  • Angle of installation: Parallel (180 degrees)
  • Connector: G1 / 2 20mm
  • Rated working voltage: DC 12V
  • Power: 5W
  • Rated working current: 0.42A
  • DC esistance(20'C): 27.7 +/- 0.6ohms
  • Valve mouth diameter: 1.4cm
  • External diameter: 2cm
  • Length: 2.5cm
  • Water temperature: 0~60'C

Dimensions: 9.1cm x 6cm x 5cm

Weight: 115g
