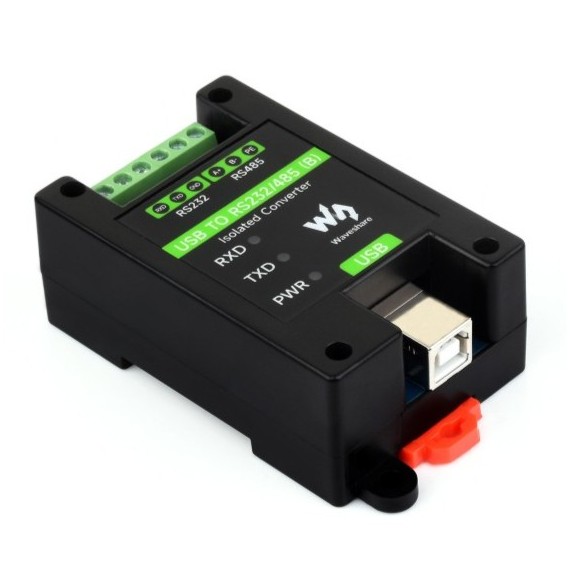

Industrial Grade Isolated USB to RS232/RS485 - FT232RNL

31-00026547
USB TO RS232/485 (B)
ΚατασκευαστήςWaveshare Part NumberUSB TO RS232/485 (B)
Διαθέσιμο
Αποστολή σε 24 ώρες
€1990
Waveshare
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

USB TO RS232/485 (B), an industrial-grade USB to RS485/422 isolated converter, adopts the original FT232RNL, an industrial rail case design, built-in protection circuits such as power isolation, ADI magnetic coupling isolation, and TVS. USB TO RS232/485 (B) is easy to operate, and can automatically transmit and receive without delay. It features fast communication speed, stability, reliability, and safety, which can be applied to various industrial control devices or applications with high communication requirements.

Features at a glance
  • Onboard original FT232RNL chip. Fast communication, stable and reliable, better compatibility
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper
  • 3 LEDs for indicating the power and transceiver status
  • Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective



Technical data
PRODUCT TYPEIndustrial grade isolated USB to RS232/485 converter
Host portUSB
Device portRS232/485
USBOperating voltage5V
ConnectorUSB-B
Protection200mA self-recovery fuse, output isolation
Transmission distanceAbout 5m
isolated RS232ConnectorScrew terminal
Transmission distanceAbout 15m
Transmission modePoint-to-point
Baud rate300bps ~ 921600bps
isolated RS485ConnectorScrew terminal
Direction controlHardware automatic control
Protection600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distanceAbout 1.2km (low rate)
Transmission modePoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate300bps ~ 921600bps
LED indicatorsPWRRed power indicator, lights up when there is USB connection and voltage is detected
TXDGreen TX indicator, lights up when the USB port sends data
RXDBlue RX indicator, lights up when the device ports send data back
Operating environmentTemperature-15℃ ~ 70℃
Humidity5%RH ~ 95%RH
Operating systemMac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7
AppearanceEnclosureRail-mount ABS case, suitable for 35mm DIN rail
Dimensions81.9×54.0×32.0mm



Package contents
  1. USB TO RS232/485 (B) ×1
  2. USB-A male to USB-B male cable ~1.2m ×1
  3. Screwdriver ×1





Κατασκευαστής
Waveshare
Part Number
USB TO RS232/485 (B)
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.05kg
