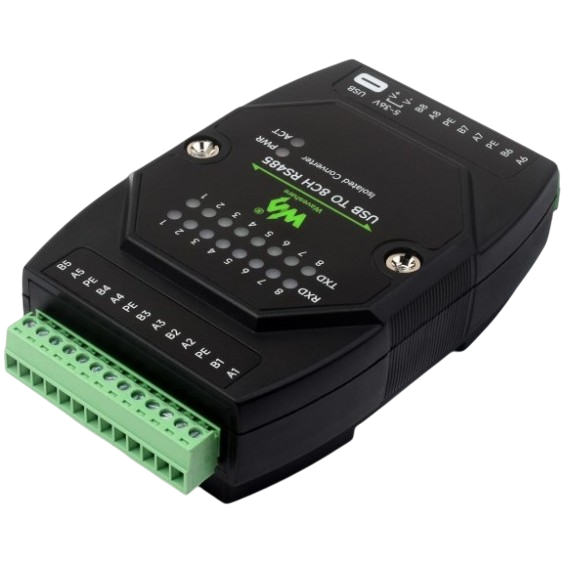

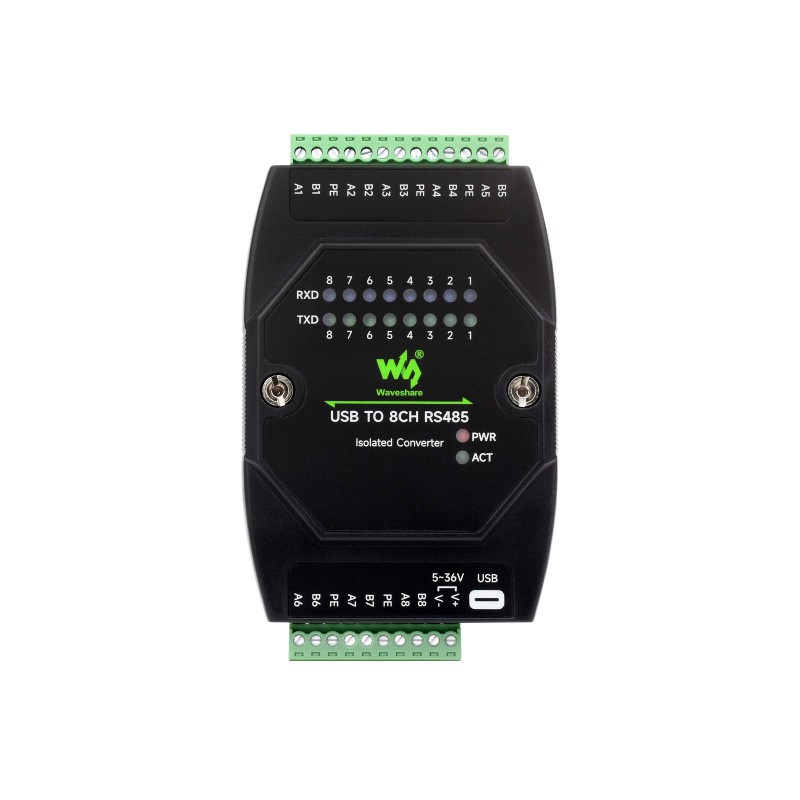

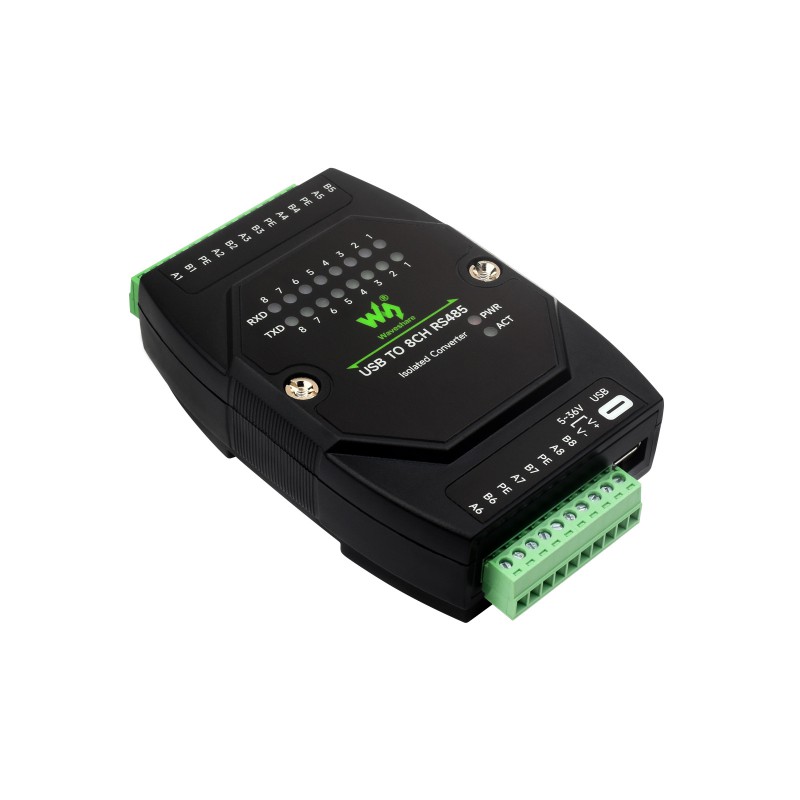

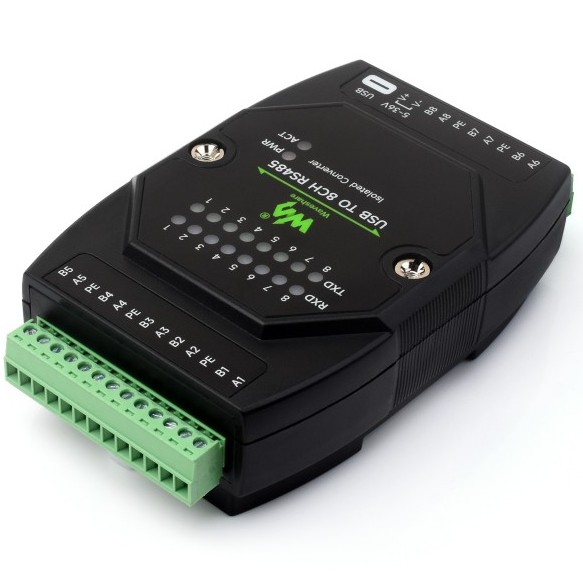

Industrial USB to 8-Ch RS485 Converter

31-00028214
USB TO 8CH RS485
CompanyWaveshare Part NumberUSB TO 8CH RS485
In Stock
Ships in 24 Hours
€4490
Waveshare
Our quantity discounts:
Quantity
10+
Price
€40.41
+ −
Add to wish list
Ask a question
Payments & Shipping

This product is an industrial 8-channel USB to RS485 isolated converter with a rail-mount case, features the original CH348L chip and built-in protection circuits such as power isolation, ADI magnetical isolation and TVS. This converter is easier to operate due to its fully automatic transceiver circuit with no delay. Boasting characteristics of fast communication, stability, reliability, and safety, it is an ideal choice for various industrial control devices and applications with high communication requirements.

Features
  • Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices
  • Supports direct power supply via Type-C port, with reserved 5V–36V DC wide voltage screw terminal for auxiliary power input
  • Onboard unibody power supply isolation, provides stable isolated voltage
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

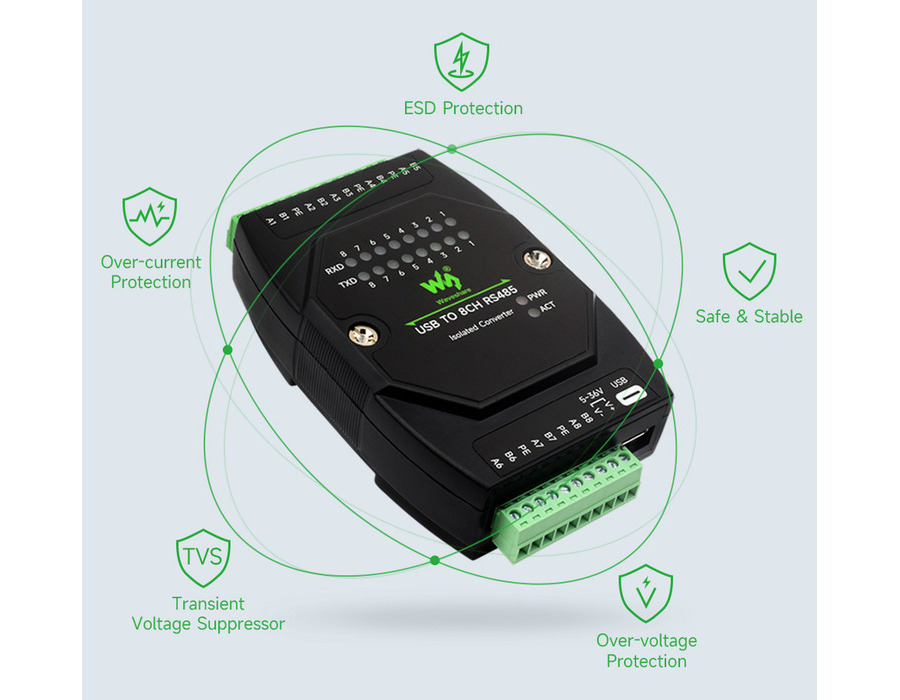

  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching
  • LEDs for indicating the power, device configuration status and transceiver status

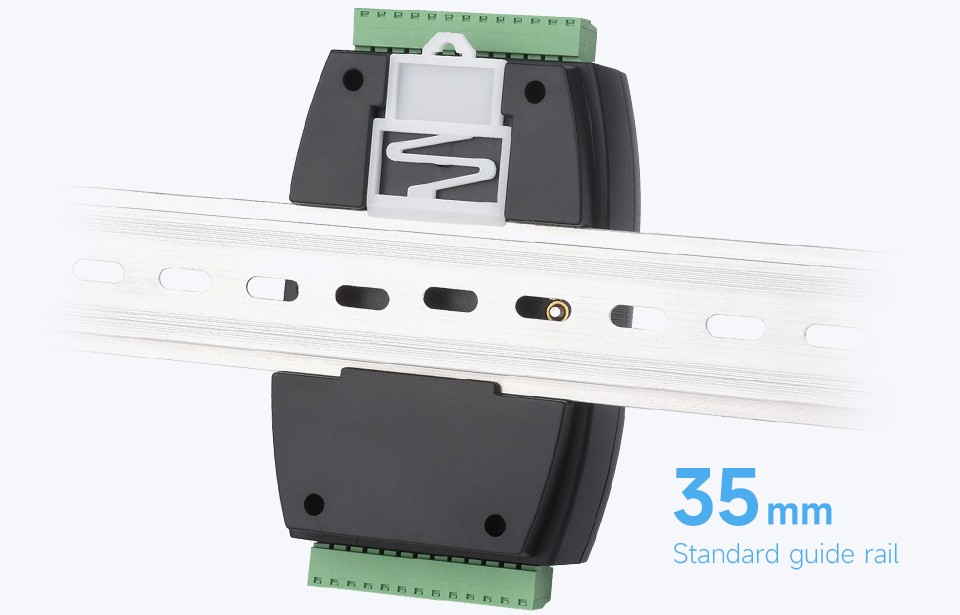

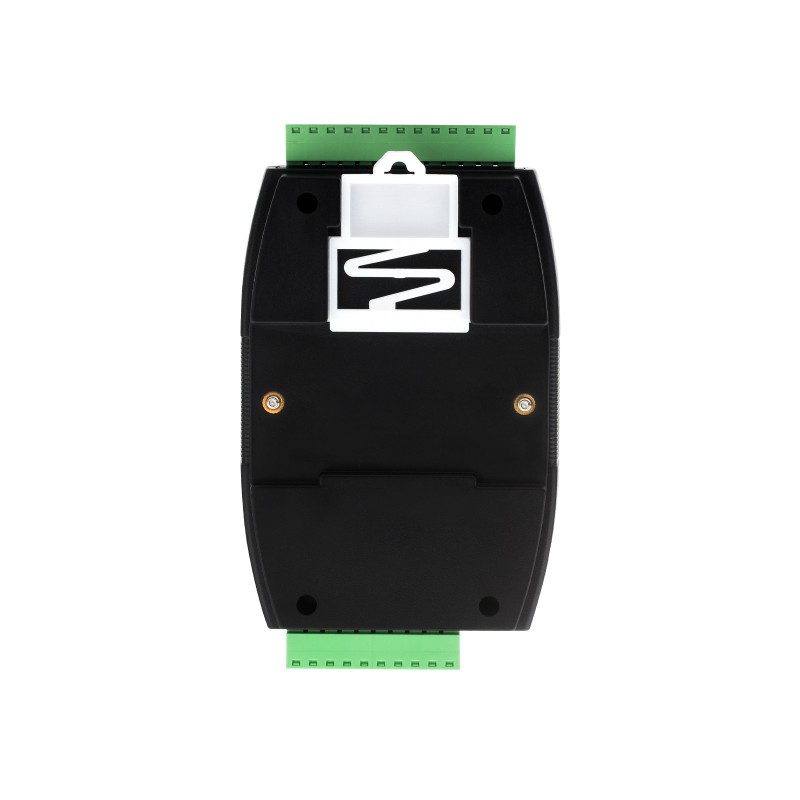

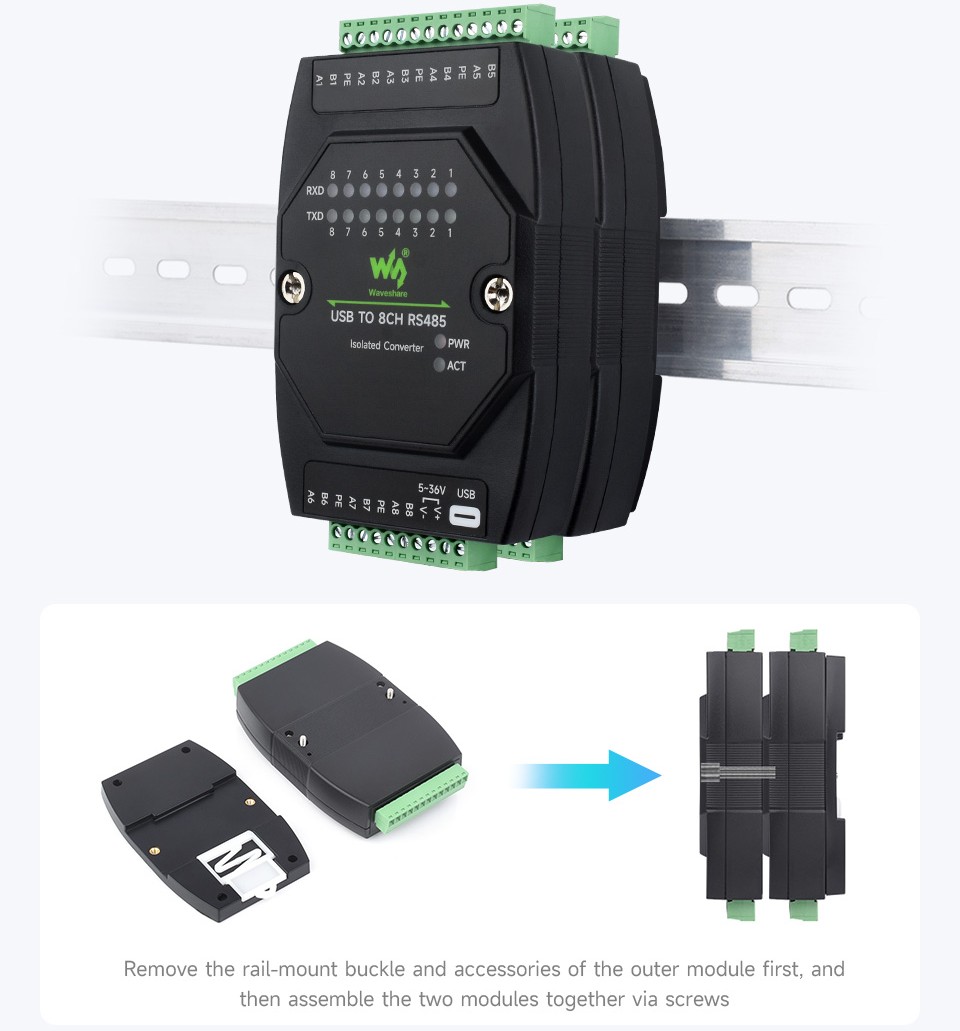

  • Rail-mount case design, support stackable combination, easy to install and safer to use
  • Supports multiple operating systems: macOS, Linux, Android, Windows 11/10/8.1/8/7


Technical data
Host portUSB
Device portRS485
Power supplyUSB Type-C (5V), screw terminal (5V–36V)
USBOperating voltage5V
ConnectorUSB-C
Protection200mA self-recovery fuse, isolated output
Transmission distanceAbout 5m
Isolated RS485ConnectorScrew terminal
Direction controlHardware automatic control
Protection600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distanceAbout 1.2km (low rate)

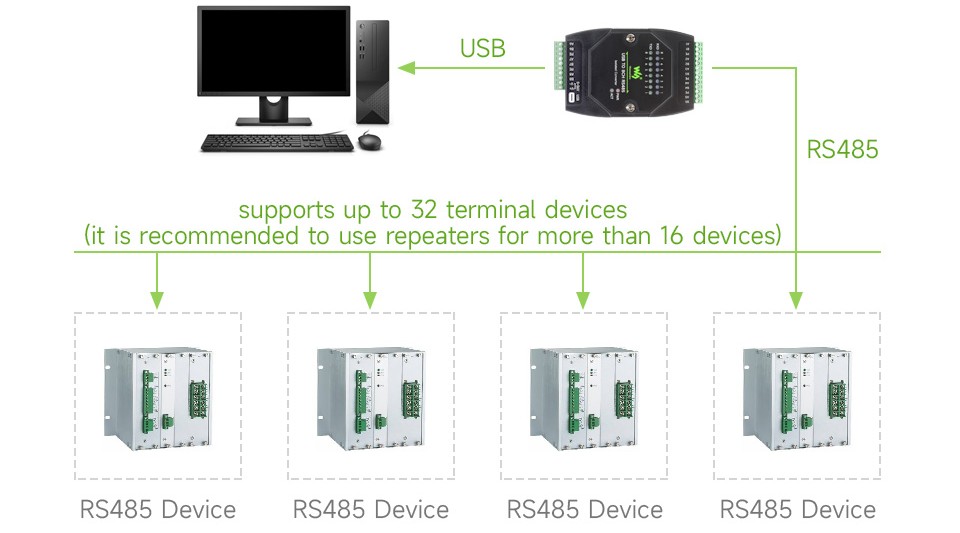

Transmission modePoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate1200bps–921600bps

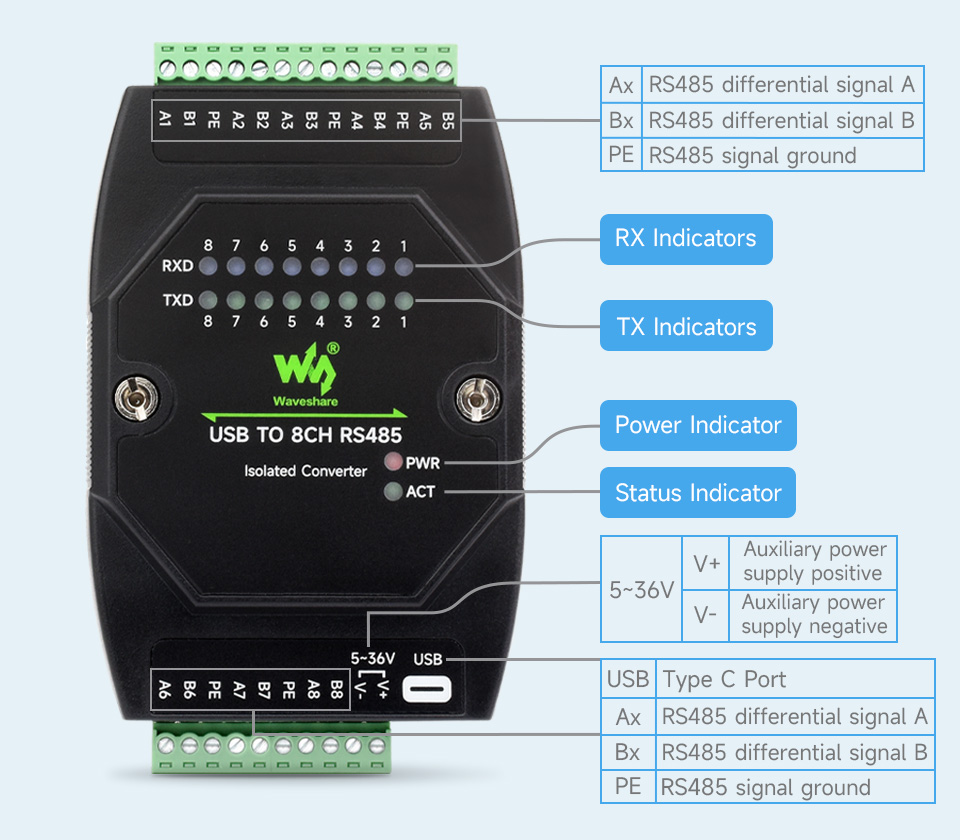

LED indicatorsPWRRed power indicator, lights up when there is USB connection and voltage is detected
ACTStatus indicator, lights up green when the driver is detected.
TXDGreen TX indicator, lights up when the USB port sends data
RXDBlue RX indicator, lights up when the device ports send data back
Operating environmentTemperature-15℃–70℃
Humidity5%RH–95%RH

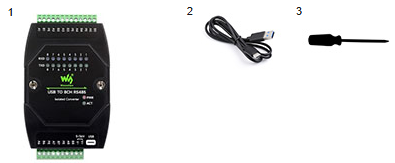

Package contents
  1. USB TO 8CH RS485 ×1
  2. USB-A male to USB-C male cable ~1m ×1
  3. Screwdriver ×1

Company
Waveshare
Part Number
USB TO 8CH RS485
Warranty
12 Month Manufacturer Warranty
G. Weight
0.162kg
Interface
  • USB
  • RS485
Mounting
  • DIN rail
Protection
  • Power supply isolation
  • Signal isolation
  • Overcurrent
  • Overvoltage
  • ESD
  • Surge/Transient
Supply Method
  • Screw terminal
  • USB
Supply Voltage
5–36 V
Converter Type
  • USB/RS485
