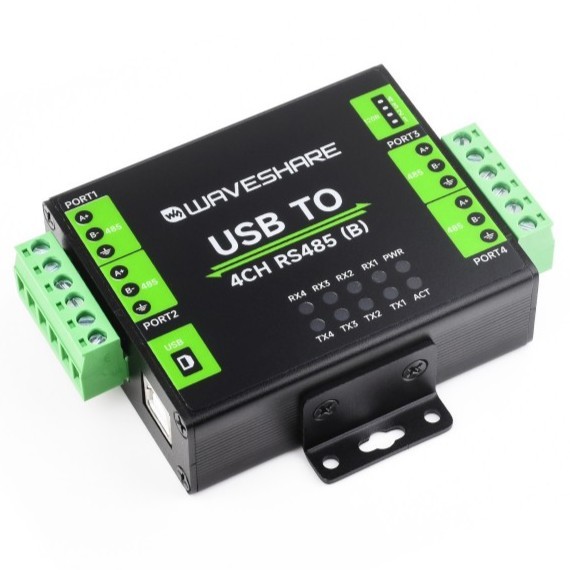

Industrial USB to 4-Ch RS485 Converter (B)

Κωδικός:

31-00026545

Part Number: USB TO 4CH RS485 (B)

ΚατασκευαστήςWaveshare Part NumberUSB TO 4CH RS485 (B)

Διαθέσιμο

Αποστολή σε 24 ώρες

€24⁸⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€22.32

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This is an industrial USB to RS485 converter featuring the original CH344L chip, with built-in protection circuits including power isolation, ADI magnetic isolation, and TVS. Its aluminum alloy case design ensures durability. The converter is easy to operate, offers automatic transmission, and delivers fast communication, stability, reliability, and safety. It is ideal for industrial devices and applications with high demands.

Key features

Adopts original CH344L chip, high-speed communication, stable and reliable, better compatibility.
Supports USB to 4-ch isolated RS485, convenient for expanding multiple RS485 industrial serial devices.
Onboard unibody power isolation, provides stable isolation voltage, no additional power supply is required at the isolated side.
Onboard unibody digital isolation, support signal isolation, with better reliability, stronger anti-interference ability, and lower power consumption.
Onboard TVS (Transient Voltage Suppressor) to effectively suppress surge voltage and transient spike voltage in circuits, lightning-proof protection, and anti-static protection.
Onboard self-resetting fuses and protection diodes ensure stable current and voltage output, prevent overcurrent and overvoltage, and improve shock resistance.
Built-in RS485 output terminal 120R, can be enabled by dip switches, and flexible switching.
The transmission distance is about 1.2km for RS485 and about 5 meters for USB.
10× external LEDs for power, device configuration status, and signaling status.
Aluminium alloy enclosure with sand blasting and anodic oxidation.
Supports wall-mount and rail-mount installation, rigid and nice-looking, easy to install.

Technical data

Product type	Industrial isolated USB to RS485 converter
Host port	USB
Device port	RS485
Baudrate	1200bps ~ 460800bps
USB	Operating voltage	5V
	Connector	USB-B
	Protection	500mA resettable fuse, output isolation
Isolated RS485	Connector	Screw terminal
	Direction control	Hardware automatic control
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R matching resistors)
	Transmission mode	Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Indicators	PWR	Power indicator, lights up while the USB is connected and voltage is detected
	ACT	Status indicator, lights up green while the driver is detected.
	RXD	RXD indicator, lights up when the device ports send data back
	TXD	TXD indicator, lights up when the USB port is sending data
Operating environment	Temperature	-40 ~ 85℃
Operating environment	Humidity	5%RH ~ 95%RH
Operating system	Win7/8/8.1/10/11, Mac, Linux, Android

Waveshare Industrial USB to serial port converters - Comparison table

Model	GRobotronics SKU	Description	Serial port converter	Isolation
Industrial USB to RS232/RS485/TTL Converter	31-00015817SKU copied!	USB to single-channel serial port Adopts FT232RL solution Wall-mount and desktop support	USB to RS232 USB to RS485 USB to TTL	Yes
Industrial USB to RS232/RS485/RS422/TTL Converter	31-00023996SKU copied!	USB to single-channel serial port Adopts FT232RNL solution Wall-mount and rail-mount support	USB to RS232 USB to RS485 USB to RS422 USB to TTL	Yes
Industrial USB to 2-Ch UART/I2C/SPI/JTAG Converter	31-00025411SKU copied!	USB to 2-ch serial port Adopts CH347T solution Wall-mount and desktop support	USB to 2-ch TTL USB to 1-ch TTL & 1-ch I2C & 1-ch SPI USB to 1-ch TTL & 1-ch JTAG	No
Industrial USB to 4-Ch RS485 Converter	31-00025219SKU copied!	USB to 4-ch serial port Adopts CH344 solution Wall-mount and desktop support	USB to 4-ch RS485	No
Industrial USB to 4-Ch RS485 Converter (B)	31-00026545SKU copied!	USB to 4-ch serial port Adopts CH344 solution Wall-mount and desktop support	USB to 4-ch RS485	Yes
Industrial USB to 4-Ch RS232/RS485 Converter	31-00026681SKU copied!	USB to 4-ch serial port Adopts FT4232HL solution Wall-mount and rail-mount support	USB to 4-ch RS232 USB to 3-ch RS232 & 1-ch RS485 USB to 2-ch RS232 & 2-ch RS485	Yes
Industrial USB to 4-Ch RS232/RS485/RS422/TTL Converter	31-00025790SKU copied!	USB to 4-ch serial port Adopts FT4232HL solution Wall-mount and desktop support	USB to 1-ch TTL & 3-ch RS485 USB to 1-ch TTL & 2-ch RS485 & 1-ch RS232 USB to 1-ch TTL & 2-ch RS485 & 1-ch RS422 USB to 1-ch TTL & 1-ch RS485 & 1-ch RS232 & 1-ch RS422 USB to 2-ch TTL & 2-ch RS485 USB to 2-ch TTL & 1-ch RS485 & 1-ch RS422 USB to 2-ch TTL & 1-ch RS422 & 1-ch RS232	Yes
Industrial USB to 8-Ch TTL Converter	31-00027076SKU copied!	USB to 8-ch serial port Adopts CH348L solution Wall-mount and desktop support	USB to 8-ch TTL	No
Industrial USB to 8-Ch RS485 Converter	31-00028214SKU copied!	USB to 8-ch serial port Wall-mount and rail-mount support	USB to 8-ch RS485	Yes
