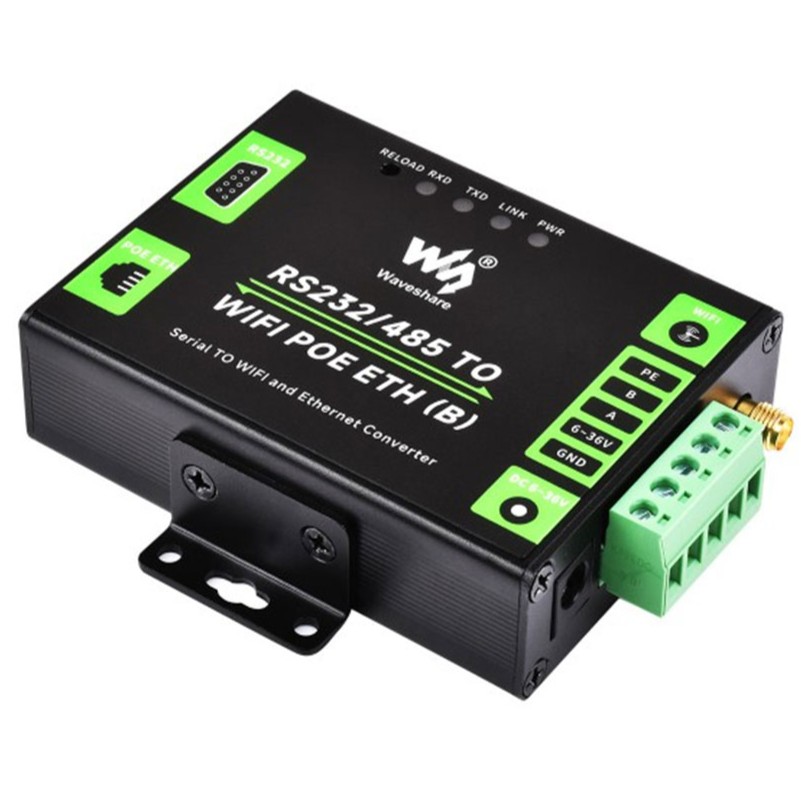

Industrial RS232/RS485 to Wi-Fi & Ethernet Converter with PoE

31-00025223
RS232/485 TO WIFI POE ETH (B)
ΚατασκευαστήςWaveshare Part NumberRS232/485 TO WIFI POE ETH (B)
Κατόπιν παραγγελίας
Διαθέσιμο σε 30-60 ημέρες
Αναμένεται την Παρασκευή, 12 Ιούνιος 2026
€3990
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€35.91
+ −
Αγαπημένα
Κάνε μια ερώτηση
Πληρωμή & Μεταφορικά

This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6V–36V wide range power supply, and PoE function optional. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, etc.


Available options


Two different interfaces
  • Ethernet port and WiFi To RS232/485: The Ethernet port and WiFi can send data to the two serial ports at the same time.
  • RS232/485 To Ethernet Port and WiFi: Only one of the RS232 and RS485 can send data to the Ethernet port and WiFi at the same time.



Industrial grade serial server

Industrial aluminum alloy case, wall-mount and rail-mount support. Small in size, easy to install, and cost-effective.


Function Block Diagram


Supports transparent transmission mode

Supports TCP Server, TCP Client, UDP Server, UDP Client.




Supports multi wireless networking methods

Supports AP mode, STA mode, and AP+STA mode.




Technical data - Comparison table
ProductIndustrial RS485 to
WiFi & Ethernet Converter		Industrial RS232/RS485 to
WiFi & Ethernet Converter		Industrial RS232/RS485 to
WiFi & Ethernet Converter with PoE
GRobotronics SKU31-0002196831-0002522231-00025223
Outline
Product DescriptionIndustrial rail-mount module
with plastic case		Industrial rail-mount/wall-mount module
with metal case		Industrial rail-mount/wall-mount module
with metal case & PoE function
Power supplyDC 5V–36VDC 6V–36VDC 6V–36V / PoE port
Power supply methodScrew terminalDC 5.5 power port, screw terminalDC 5.5 power port, screw terminal, or PoE port
Dimensions (L × W × H)109.66×28.00×64.71mm84.00×64.00×24.00mm
Communication
Ethernet10/100M auto-negotiation RJ45 connector
WIFI802.11b/g/n compliant
Serial portRS485 (ESD/EFT/surge protection)RS232 (ESD/EFT)
RS485 (ESD/EFT/surge protection)
Wireless specification
Frequency Band2.412–2.484 GHz
Wireless networkStation / AP / AP+Station Mode
Security mechanismWPA-PSK / WPA2-PSK
Encryption typeTKIP / AES
Transmitting power802.11b: +19dBm (Max.@11Mbps) 802.11g: +18dBm (Max.@54Mbps)
802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial specification
Baudrate300 – 460800 bps
Parity bitnone, odd, even, mark, space
Data bit5 – 9 bits
Flow controlN/A
Software
ProtocolTCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configurationhost, web browser, serial AT commands
Communication methodTCP/IP direct communication, VCOM
Operating modeTransparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment requirement
Operating temperature-40℃ – 85℃
Humidity range5% – 95% relative humidity


Primary function

Supports RS232/485 to WIFI and Ethernet, Ethernet to WIFI, etc.


Supports multi wired networking methods

Support APLAN, APWAN, Router, and Bridge mode.





Multi configuration methods

Supports multi configuration methods such as hosts, web browser and serial port configuration.


AT Command mode

The user can query the current status of the module or set related parameters by sending AT commands.


Socket distribution protocol

In the transparent transmission mode, the serial device can send data to the specified socket link; the network data of each Socket is sent to the serial device through the serial port.


Hardware protection

Power supply anti-reverse, communication interface ESD and surge protection, EFT Electrical Fast Transient/Burst protection.


Customized registration packets, heartbeat packets

The registration package is used to identify the device information to the server, so that the server can identify the device.



Package contents
  • GRobotronics SKU: 31-00025222
    • 1. RS232/485 TO WIFI ETH (B) ×1
    • 2. 2.4G WiFi antenna ×1
    • 3. Rail-mount buckle ×1
    • 4. Screwdriver ×1
    • 5. Screws pack ×1


  • GRobotronics SKU: 31-00025223
    • 1. RS232/485 TO WIFI POE ETH (B) ×1
    • 2. 2.4G WiFi antenna ×1
    • 3. Rail-mount buckle ×1
    • 4. Screwdriver ×1
    • 5. Screws pack ×1


Κατασκευαστής
Waveshare
Part Number
RS232/485 TO WIFI POE ETH (B)
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.182kg
Διασύνδεση
  • Ethernet
  • RS485
  • RS232
  • Wi-Fi
Εγκατάσταση
  • Ράγα DIN
  • Επιτοίχια
Προστασία
  • ESD
  • Surge/Transient
  • Reverse polarity
Τάση Τροφοδοσίας
6–36 V
Τύπος Παροχής
  • PoE
  • DC jack
  • Κλέμες
Τύπος Μετατροπέα
  • Ethernet/RS485
  • Wi-Fi/RS485
  • Ethernet/RS232
  • Wi-Fi/RS232
