RS232 / 485 / 422 To RJ45 Ethernet Module

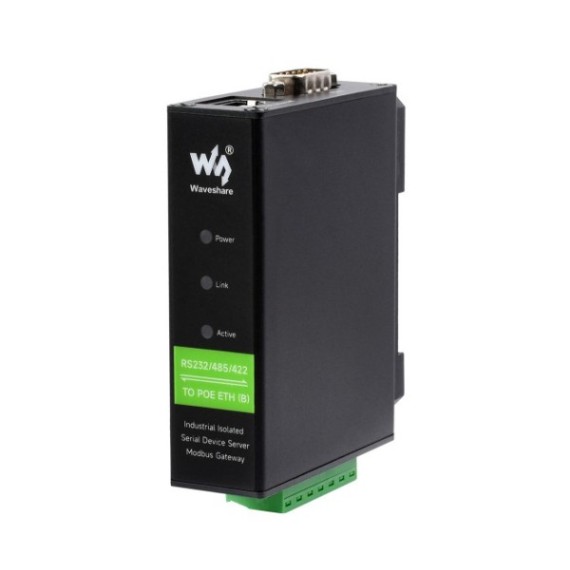

Industrial Isolated, Rail-mount RS232/485/422 Serial Server

This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port with PoE function, uses DC port (outer diameter: 5.5mm, inner diameter: 21mm) and screw terminals for power input. The case with rail-mount support, small in size, easy to install, cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Primary Function
Bi-Directional Transparent Data Transmission Between RS232/485/422 And Ethernet

Three Different Interfaces
Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios

  • Ethernet Port To RS232/485/422
    The Ethernet Port Can Send Data To Three Serial Ports At The Same Time

  • RS232 / 485 / 422 To Ethernet Port
    Only One Of The RS232, RS485, And RS422 Can Send Data To The Ethernet Port At The Same Time

Three Methods For Power Supply
Support PoE Ethernet Port Power Supply, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal And DC Power Port For Power Supply, DC 6~36V Wide Voltage Range Input

Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

Interface Introduction

  • Product Type: Serial server, Modbus Gateway, MQTT Gateway
  • Basic Function: Bi-directional transparent data transmission between RS232/485/422 and Ethernet
  • Communication interface:
    • RS232 port × 1
    • RS485 port × 1
    • RS422 port × 1
    • Ethernet port × 1
  • Power supply: 6 ~ 36V DC screw terminal, or PoE port
  • Isolation Protection: Power isolation, Signal isolation
  • Communication:
    • Ethernet:
    • PoE network port, support IEEE 802.3af standard
    • 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
  • Serial port: Isolated RS232/485/422
  • Serial Specification:
    • Baudrate: 300 ~ 115200 bps
    • Parity bit: none, odd, even, mark, space
    • Data bit: 5 ~ 9 bits
    • Flow control: N/A
  • Software:
    • Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
    • Configuration: Host, web browser, device management functions library
    • Communication method: TCP/IP direct communication, VCOM
    • Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
  • Environment Requirement:
    • Operating temperature: -40℃ ~ 85℃
    • Humidity range: 5% ~ 95% relative humidity
    • Dimensions:88.7x72.5x24.2mm

Modbus Gateway Support
Suitable For Modbus Networking Upgrade, Can Be Used With Specific Configuration Software

Multi Communication Modes
Supports TCP Server / TCP Client / UDP Mode / UDP Multicast

MQTT/JSON To Modbus
More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Multi Hosts Roll-Polling Support
Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices

User-Defined Heartbeat/Registration Packet
Easy For Cloud Communication And Device Identification

NTP Protocol Support
Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods
Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

Multiple Protection, Safe And Stable
Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance

Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling
