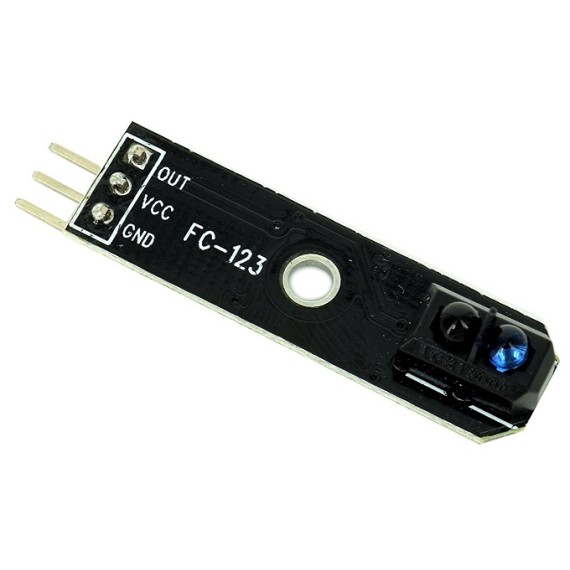

Infrared Sensor TCRT5000

19-00010103
CompanyOem
In Stock
Ships in 24 Hours
€250
Our quantity discounts:
Quantity
10+
100+
Price
€2.00
€1.75
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

This IR reflective sensor utilizes a TCRT5000 to detect color and distance. It emits IR and then detects if it receives the echo. This sensor is often used in line following robots, auto data logging on utility meters, because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm, and the central point is about 2.5mm. The infrared diode will emmitting the infrared continutelly when the module connect to the power, when the emitted infrared light has not been reflected or the strength is not big enough,the triode will in the off state, at this time, D0 output logic LOW and the signal indicate LED off.

  • Detects the reflected distance: 1 - 8mm
  • Voltage: 5V
  • The output format: digital signal (0 and 1)
  • A fixed bolt hole: 3mm for easy installation
  • Built in LED indicator
  • Meter pulse data sampling
  • Black and white line detection
  • Fax machines paper shredders detection
  • Obstacle detection
Company
Oem
Warranty
Component, not covered by warranty
G. Weight
0.003kg
Sensor Type
  • Infrared
Typical Input Voltage
  • 5VDC
Interface
  • Digital
Communication Protocol
  • Without
