Τροφοδοτικό Πάγκου 0-30V 0-10A – Geti GLPS3010H

24-00014222
GLPS3010H
ΚατασκευαστήςGeti Part NumberGLPS3010H
Διαθέσιμο
Αποστολή σε 24 ώρες
9900
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

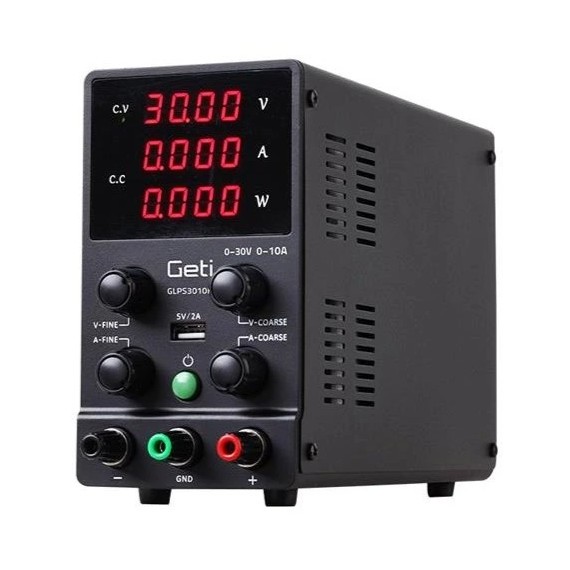

The Geti GLPS3010H laboratory power source is intended for powering various electronic devices. It smoothly regulates the output voltage and output current. It reliably maintains the set values regardless of fluctuations in the supply voltage or the connected load. The output voltage is adjustable between 0V - 30V and the output current is adjustable between 0A - 10A. The stability and ripple factor of the source are very good. The device can be operated as a source of constant voltage or as a source of constant current. The device is equipped with short-circuit protection so that in case of an unexpected event it is safe for the user and at the same time it is not destroyed. The power supply is suitable for work in laboratories, workshops, electronics production lines, companies repairing household appliances, DIY, but also as a teaching aid in schools.

Technical data
  • Output voltage range: DC 0-30V, coarse & fine regulation
  • Output current range: 0-10A, coarse & fine regulation
  • Supply voltage: 220V-230V AC, 50Hz
  • Constant voltage condition:
    • Voltage stability ≤0.1% ±3mV
    • Low voltage 0.2 - 0.3% ±3mV
    • Load stability ≤0.5% ±3mV
    • Ripple and noise ≤10mVrms / ≤150mVp-p
  • Constant Current Status:
    • Ripple and noise ≤20mAms
    • Load stability ≤0.2% ±3mA
    • Current stability ≤0.2% ±3mA
  • Display accuracy: 0.5% ±2 digits
  • Display resolution: voltage 00.01V/0.01V
  • Display resolution: current 0.001A/0.01A
  • Working temperature 0°C - 40°C
  • Operating humidity <80% RH
  • Weight: 1.4kg
  • Dimensions: 220×85×150mm
  • Standard fuse: T5A
Features
  • Single-channel direct current source
  • Adjustable voltage and current
  • Backlit triple LED display for U(V), I(A) and P(W)
  • High-quality and compact design
  • Overload protection
  • USB 5V/2A
Κατασκευαστής
Geti
Part Number
GLPS3010H
Εγγύηση
24 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
4.6kg
Τύπος οθόνης
3× 4-Digit LED
Αριθμός καναλιών
1
Είδος τροφοδοτικού
Γραμμικό (Linear)
Τάση εξόδου
0...30 V DC
Ένταση εξόδου
0...10 A
Voltage stabilisation
≤0.1 ±3mV
Current stabilisation
≤0.2% ±3mA
Διαστάσεις τροφοδοτικού
220×85×150
Measuring instrument features
  • USB 5V/2A
Προστασία
  • anti-overload
