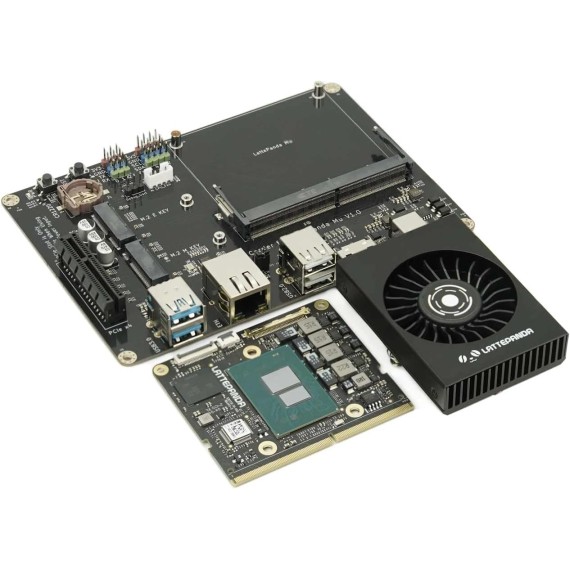

The LattePanda Mu x86 Compute Module Evaluation Kit is a comprehensive development kit designed for hardware developers. It includes the LattePanda Mu Compute Module, Lite Carrier Board, and Active Cooler. This kit is suitable for evaluating common interfaces such as USB, HDMI, PCIe, UART, and can be used for solution evaluation, prototype design, and more. It provides abundant open-source design materials to accelerate development progress and make hardware development more efficient and convenient.
Product 1 in this Kit - LattePanda Mu Compute Module
Small but Powerful
LattePanda Mu x86 compute module features Intel N100 quad-core processor with 3.4GHz turbo frequency, offering ample performance and multitasking capabilities for the majority of applications.
%20-%20Evaluation%20Kit_8.jpg?1733232091815)
Card-Sized
Despite its small size of 69.6mm x 60mm, The pocket size of the LattePanda Mu N100 computer-on-module allows for integration into space-constrained devices, delivering powerful computation without occupying much space.
%20-%20Evaluation%20Kit_9.jpg?1733232146580)
Flexibility in Performance and Energy
The processor's TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output. The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.
%20-%20Evaluation%20Kit_10.jpg?1733232184703)
Flexible Expansion Pins
LattePanda Mu compute module exposes extensive pins, such as 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create the specific solution.
%20-%20Evaluation%20Kit_11.png?1733232204078)
Multi-System Support
LattePanda Mu x86 computer-on-module supports multiple operating systems, including Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.
%20-%20Evaluation%20Kit_12.jpg?1733232225438)
Making Carrier Simpler and Easier
LattePanda Mu x86 compute module offers open-source carrier board files and libraries as reference materials, enabling you to fine-tune the carrier board design to meet your specific needs, significantly reducing development time.
%20-%20Evaluation%20Kit_13.jpg?1733232253053)
Customized Solutions
LattePanda Team offers customized services, including customized carrier boards, boot screens, BIOS functionality, operating systems, etc. If you have any specific requirements, please feel free to contact us at [email protected]. The LattePanda Team is dedicated to providing timely and professional support to meet your customization needs.
%20-%20Evaluation%20Kit_14.jpg?1733232274271)
LattePanda Mu Compute Module - Technical data
- Processor: Intel Processor N100 4 Cores up to 3.4GHz
- Memory: LPDDR5 4800MT/s 8GB with IBECC supported
- Storage: eMMC 5.1 64GB
- Display: 3 Ouputs; Max Resolution 4096 x 2160@60Hz
- I/O
- PCIe 3.0: up to 9 lanes
- SATA 3.0: up to 2 ports
- USB 3.2 (10Gbps): up to 4 ports
- USB 2.0 (480Mbps): 8 ports
- I2C, UART and GPIOs
- Power: 9~20V
- Operating System: Windows, Ubuntu
- Environment: 0~60°C; 0~80% relative humidity
- Size: 69.6 x 60mm
