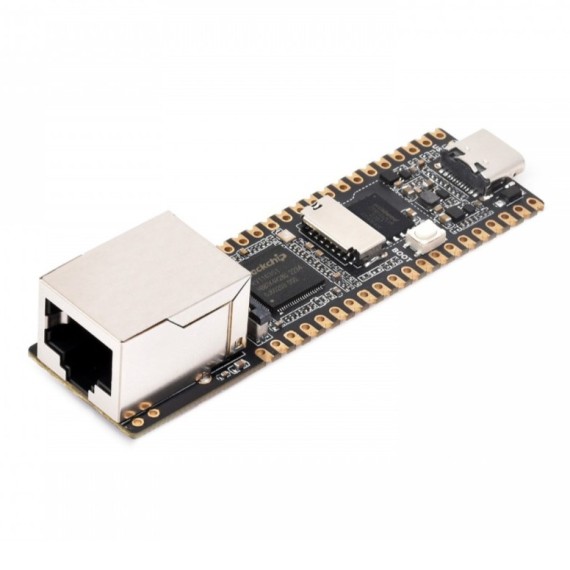

LuckFox Pico Plus RV1103 - A7/RISC-V - With Ethernet, Header: Without Headers

LuckFox Pico Plus RV1103 - A7/RISC-V - With Ethernet, Header: Without Headers, 2 image

LuckFox Pico Plus RV1103 - A7/RISC-V - With Ethernet

Κωδικός:

31-00025189

Part Number: Luckfox Pico Plus

Header:

Without Headers With Pre-soldered Headers

ΚατασκευαστήςLUCKFOX Part NumberLuckfox Pico Plus

Διαθέσιμο

Αποστολή σε 24 ώρες

€12⁸⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€11.52

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Προβολη ολων των παραλλαγών ως λίστα

Column filling

Ταξινόμηση Τιμή	Ταξινόμηση Διαθεσιμότητα	Ταξινόμηση Κωδικός	Ταξινόμηση Header
€12⁸⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00025189	Header: Without Headers
€13⁸⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00025413	Header: With Pre-soldered Headers

Περιγραφή
Χαρακτηριστικά

LuckFox Pico Plus is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C, USB, etc., which is convenient for developing and debugging quickly.

Key features

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Technical data

Processor	Cortex [email protected] + RISC-V
NPU	0.5TOPS, supports int4, int8 and int16
ISP	Input 4M @30fps (Max)
Memory	64MB DDR2
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	25 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (128MB)

What's on board

USB Type-C connector
ACT-LED
TF card slot
BOOT button, press it when powering on to enter download mode
W25N01GV, 1Gb SLC NAND FLASH
RV1103, Vision processor SoC with built-in ARM Cortex-A7 core
CSI camera interface, MIPI CSI 2-lane
RJ45 Ethernet port
GPIO header
USB test pads
BOOT test pad
Microphone test pads

Selection guide

Product	LuckFox Pico RV1103 - A7/RISC-V	LuckFox Pico Plus RV1103 - A7/RISC-V - With Ethernet	LuckFox Pico Pro RV1106 - A7/RISC-V - 128MB	LuckFox Pico Max RV1106 - A7/RISC-V - 256MB
GRobotronics SKU	31-00025078 (Without Headers)	31-00025189 (Without Headers)	31-00025717 (Without Headers)	31-00025719 (Without Headers)
GRobotronics SKU	31-00025412 (With Pre-soldered Headers)	31-00025413 (With Pre-soldered Headers)	31-00025718 (With Pre-soldered Headers)	31-00025720 (With Pre-soldered Headers)
Main Chip	RV1103G1		RV1106G2	RV1106G3
Memory	64MB		128MB	256MB
NPU	0.5 TOPS, supports int4, int8 and int16			1.0 TOPS, supports int4, int8 and int16
ISP	Input 4M @30fps (Max)		Input 5M @30fps (Max)
Default Storage	TF card (Not included)	SPI NAND FLASH (128MB)	SPI NAND FLASH (256MB)
Features	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
