Linear Actuator End Mount

από OEM
The V-Slot Modular Actuator End Mounts are stamped and folded aluminum end mounts and when used with V-Slot Aluminum Extrusion create a belt driven linear...
14-00018846
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.80
Χωρίς ΦΠΑ 5.48
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 5.44

ΠΕΡΙΓΡΑΦΗ

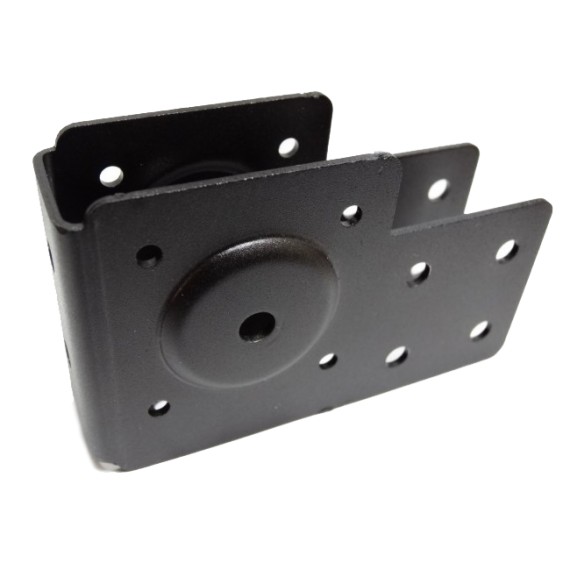

The V-Slot Modular Actuator End Mounts are stamped and folded aluminum end mounts and when used with V-Slot Aluminum Extrusion create a belt driven linear actuators by mounting both a Nema 17 Stepper Motor and the Smooth Idler Pulley. You can create V-Slot actuators at varying lengths using any of the four available sizes of V-Slot. One of the great features of these end mounts is the ability to mount to the ends as well as the bottom. This modular concept allows for the creation of many different machine designs. See example pictures to understand how these end mounts can be coupled with the Mini V plate. The mounting holes on the End Mounts are 20mm apart allowing for easy connection to both the Mini V Plate and V-Slot extrusion. Use with the double tee nut for a quick and simple installation. So if you need a belt driven linear actuator that can be made to custom lengths and with connection flexibility for a modular style build, then these end mounts are perfect for your project.

ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.004kg
Χώρα Προέλευσης:
Κίνα
Form Factor:
NEMA 17
Υλικό:
Aluminium

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 1.7mm thick
  • Black Anodized
  • Use with Nema 17 Stepper Motors
