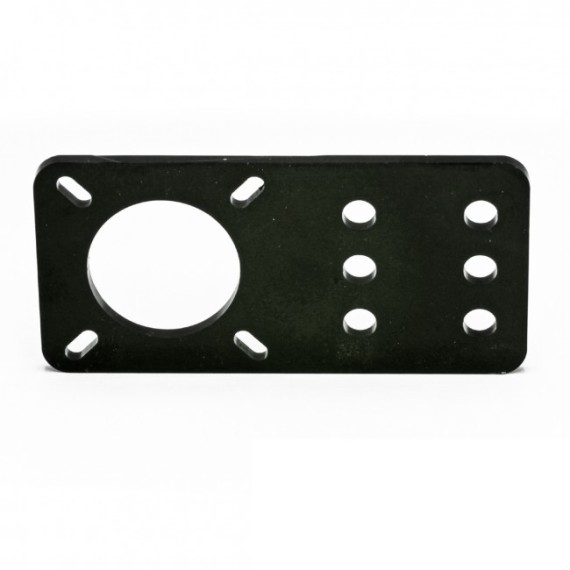

Motor Mount Plate for Nema 17

by OEM
This is the Motor Mount Plate for Nema 17. It can be used with both V-Slot and OpenRail. The idea behind this plate is to give you a mountable yet movable...
27-22280020
Volumetric weight: 0.02kgs
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
4.99
Without VAT 4.02
+
WISHLIST COMPARE

DESCRIPTION

This is the Motor Mount Plate for Nema 17. It can be used with both V-Slot and OpenRail.
The idea behind this plate is to give you a mountable yet movable plate for your Nema 17 Stepper Motors.
This works great as it allows you to easily mount your motor anywhere on the extrusion. There are a lot of possible mounting configurations for this plate.

SPECIFICATIONS

Form Factor:
NEMA 17
Series:
  • Smooth Idler
  • V-Slot
Material:
Aluminium

Notes

EXTRA SPECIFICATIONS

  • 6063-T6 Aluminum Black Anodized Finish
  • ~3mm (1/8") Thick

Dimensions

  • 82 x 39.5 x 3mm
  • Mounting holes: 5mm
  • Motor mount: 6.7mm
  • Motor hole: 35mm
