Home/Robotics/Sensors/Imaging / Interactive/Long-wave IR Thermal Imaging Camera HAT (B) - 45° FOV

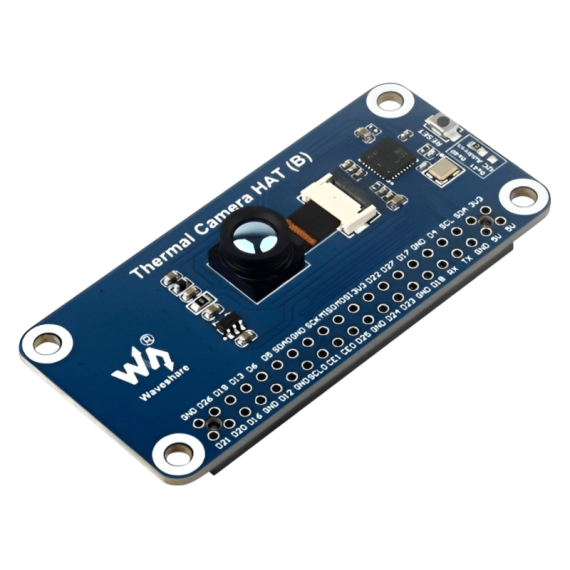

Long-wave IR Thermal Imaging Camera HAT (B) - 45° FOV, 2 image

Long-wave IR Thermal Imaging Camera HAT (B) - 45° FOV

SKU:

31-00028566

Part Number: Thermal-45 Camera HAT (B)

CompanyWaveshare Part NumberThermal-45 Camera HAT (B) HAT CompatibilityRaspberry Pi 4, Raspberry Pi 5, Raspberry Pi Zero HAT TypeSensor

Upon Order

Available in 45-60 days

€112⁸⁰

Our quantity discounts:

Quantity

10+

Price

€101.52

+ −

Ask a question

Payments & Shipping

Description
Specifications

This is a long-wave IR thermal imaging camera HAT that adopts the hybrid technology of microbolometer and thermopile pixel, features 80×62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

Compared to the Thermal Camera HAT (GRobotronics SKU: 31-00025287), this product features optimized internal filter and image processing algorithm, reducing the lens size to 9×9mm and using FPC cable for connecting. The product provides basic version and wide angle version with 45°/90° FOV.

Features

Adopts the hybrid technology of microbolometer and thermopile, 80×62 array pixels
Continuous operation and thermal imaging video stream due to shutterless design
Calibrated each pixel to ensure uniformity and accuracy of temperature reading
Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
Up to 25FPS (Max) thermal imaging video stream output
Provides lens options of 45°/90° FOV
Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Application examples

Long-term non-contact temperature online monitoring
IR thermal imaging devices, IR thermometers
Smart home, intelligent building, intelligent lighting
Infant and elderly care
Fever detection
Industrial temperature control, security & safety, intrude/motion detection
Small Target Thermal Analysis, Heat Trend Analysis and Solutions

Options available

Technical data

Power supply	5V
Operating current	20mA@5V
Wavelength range	8~14μm
Target temperature	-40℃~400℃
FOV	Basic version: 56°(D) × 45°(H) × 34°(V)
FOV	Wide angle version: 122°(D) × 90°(H) × 67°(V)
Noise equivalent temperature difference	125mK
Measuring accuracy	±1.5℃ (ambient temp. 10~70℃)

Waveshare thermal cameras - Comparison table

Model	Long-wave IR Thermal Imaging Camera HAT - 45° FOV	Long-wave IR Thermal Imaging Camera Type-C - 45° FOV	Long-wave IR Thermal Imaging Camera HAT (B) - 45° FOV	Long-wave IR Thermal Imaging Camera HAT (B) - 90° FOV
GRobotronics SKU	31-00025287	31-00025288	31-00028566	31-00028567
Pixel array	80×62	80×62	80×62	80×62
Absolute accuracy (ambient temp. 10~70℃)	±2℃	±2℃	±1.5℃	±1.5℃
Target temp. range	-20℃~400℃	-20℃~400℃	-40℃~400℃	-40℃~400℃
Field of view (FOV)	45°×45°	45°×45°	45°×36°	90°×67°
Refresh rate	25FPS	25FPS	25FPS	25FPS
Operating temperature	-20℃~85℃	-20℃~85℃	-40℃~85℃	-40℃~85℃
Current	61mA	61mA	20mA	20mA
