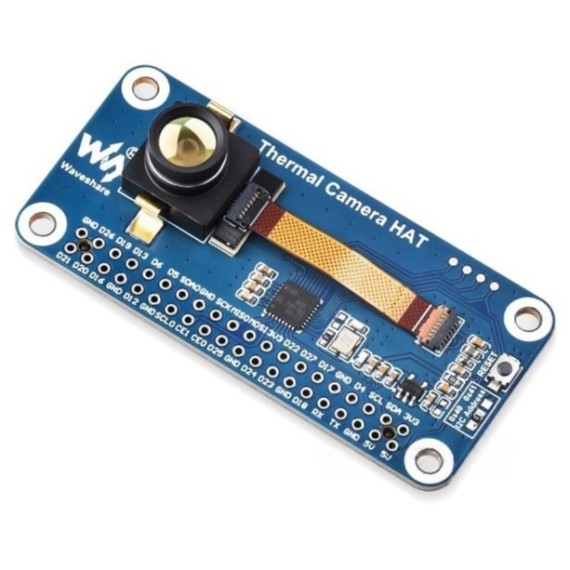

Long-wave IR Thermal Imaging Camera HAT - 45° FOV

Κωδικός:

31-00025287

Part Number: Thermal Camera HAT

ΚατασκευαστήςWaveshare Part NumberThermal Camera HAT

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€139⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€125.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This long-wave IR thermal imaging camera utilizes hybrid technology combining microbolometer and thermopile pixels, featuring an 80×62 pixel array. It detects the infrared distribution of objects within its field of view, calculates their surface temperatures, and generates thermal images. The system is designed for easy integration into a variety of industrial or intelligent control applications.

Key features

Adopts the hybrid technology of microbolometer and thermopile, 80×62 array pixels
Continuous operation and thermal imaging video stream due to shutterless design
Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
Up to 25FPS (Max) thermal imaging video stream output
Comes with online resources and manuals (Python demo for Raspberry Pi, etc.)

Application examples

High precision long-term non-contact temperature online monitoring
IR thermal imaging devices, IR thermometers
Smart home, intelligent building, intelligent lighting
Industrial temperature control, security & safety, intrude/motion detection
Small Target Thermal Analysis, Heat Trend Analysis and Solutions

Technical data

Power supply	5V
Operating current	61mA@5V
Wavelength range	8~14μm
Refresh rate	25 FPS (Max)
Noise Equivalent Temperature Difference	150mK

Waveshare thermal cameras - Comparison table

Model	Long-wave IR Thermal Imaging Camera HAT - 90° FOV	Long-wave IR Thermal Imaging Camera Type-C - 90° FOV	Long-wave IR Thermal Imaging Camera HAT (B) - 45° FOV	Long-wave IR Thermal Imaging Camera HAT (B) - 90° FOV
GRobotronics SKU	31-00025287	31-00025288	31-00028566	31-00028567
Pixel array	80×62	80×62	80×62	80×62
Absolute accuracy (ambient temp. 10~70℃)	±2℃	±2℃	±1.5℃	±1.5℃
Target temp. range	-20℃~400℃	-20℃~400℃	-40℃~400℃	-40℃~400℃
Field of view (FOV)	90°×68°	90°×68°	45°×36°	90°×67°
Refresh rate	25FPS	25FPS	25FPS	25FPS
Operating temperature	-20℃~85℃	-20℃~85℃	-40℃~85℃	-40℃~85℃
Current	61mA	61mA	20mA	20mA
