MFRC-522 NFC/RFID Controller Breakout Board - 13.56MHz

by OEM
The MFRC-522 is the cheapest NFC chip, and is what is embedded in pretty much every phone or device that does NFC.
19-00012128
Gross Weight: 0.02kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
Available in store
5.90
Without VAT 4.76

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The MFRC-522 is the cheapest NFC chip, and is what is embedded in pretty much every phone or device that does NFC. It can pretty much do it all, such as read and write to tags and cards, communicate with phones (say for payment processing), and 'act' like a NFC tag. If you want to do any sort of embedded NFC work, this is the chip you'll want to use!

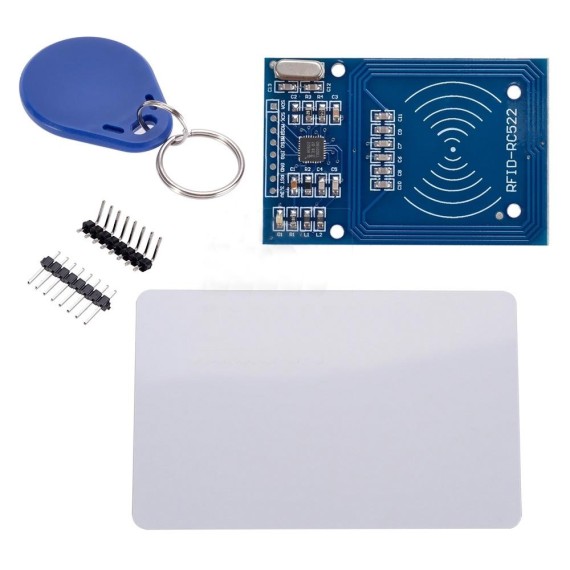

13.56Mhz RFID module Kit with IC card and round key chain tag. SPI interface fo convenient interface to microcontrollers such as Arm/AVR/Pic/Arduino, etc. The RFID Reader Module can be used in a wide variety of hobbyist and commercial applications, including access control, automatic identification, robotics, navigation, inventory tracking, payment systems, and car immobilisation.

SPECIFICATIONS

Sensor Type:
  • NFC
  • RFID
Typical Input Voltage:
  • 3.3VDC
Oparating Current:
25mA
Interface:
  • Digital
Communication Protocol:
  • SPI

SPECIFICATIONS

  • Based on the MFRC522 Chip
  • Supply Voltage : 3.3V ;
  • Current :13-26mA
  • Operating frequency: 13.56MHz
  • Read Range: 0 ~ 60mm
  • Interface: SPI
  • Data Transfer Rate: Max 10Mbit / s

Διαστάσεις

  • 40 × 60mm
  • Size of Round Tag : 0.87 × 85.5 × 54 mm
  • Size of Rectangle Tag : 32 x 40.5 x 4.2 mm
