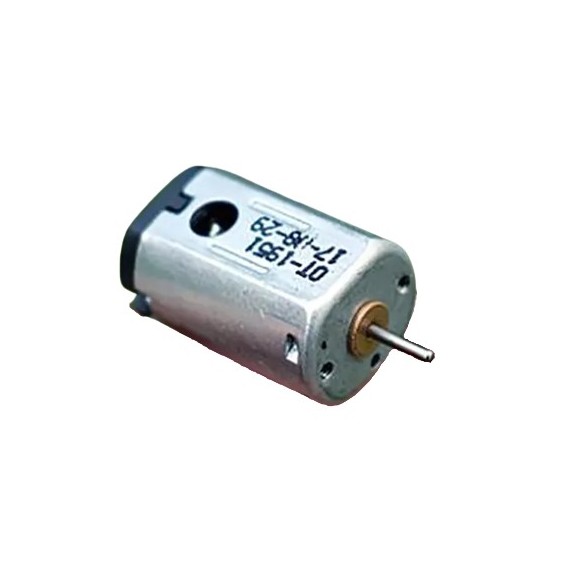

Micro Motor NdFeB 3V - 24000RPM

από OEM
NdFeB high-strength magnetic N21-1951 miniature motor is a reinforced type of N20 motor, and its external size has been lengthened by 2mm. The torque...
39-00032833
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: N21-1951
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
1.00
Χωρίς ΦΠΑ 0.81
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 0.80 0.70

ΠΕΡΙΓΡΑΦΗ

NdFeB high-strength magnetic N21-1951 miniature motor is a reinforced type of N20 motor, and its external size has been lengthened by 2mm.

The torque of this N21 motor is indeed very strong. Like these high-power density miniature motors, it is very suitable for DIY aircraft models. Ship model, car model, etc. need small size, but powerful torque model motor.

The power test machine, although this motor is very small, but the torque is strong, even if the voltage is only DC2V, the torque is very strong, can not be blocked by hand.

But please note that this motor is of high power density, and it is normal for it to be relatively easy to heat. Please pay attention to the heat dissipation environment.

The power supply current of the power supply is preferably above 2A. If the current is too small, it will also affect the power and torque of the motor.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
N21-1951
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Διάμετρος Κινητήρα:
12mm
Voltage (Range):
3Volt
Current (Stall):
0.5A
Ταχύτητα:
24000RPM
Gearmotor Style:
Hobby
Encoder:
Όχι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Motor specifications: 10x12mm
  • Motor height: 17.5mm (excluding output shaft)
  • Output shaft: 1.0mm
  • Output shaft length: 6.5mm
  • Voltage: 3 V
    • Current: 0.28 A
    • Speed: 24000 RPM
  • Voltage: 3.7 V
    • Current: 0.29 A
    • Speed: 30000 RPM
  • Voltage: 4.2 V
    • Current: 0.32 A
    • Speed: 34000 RPM
  • Motor weight: 6.5g
