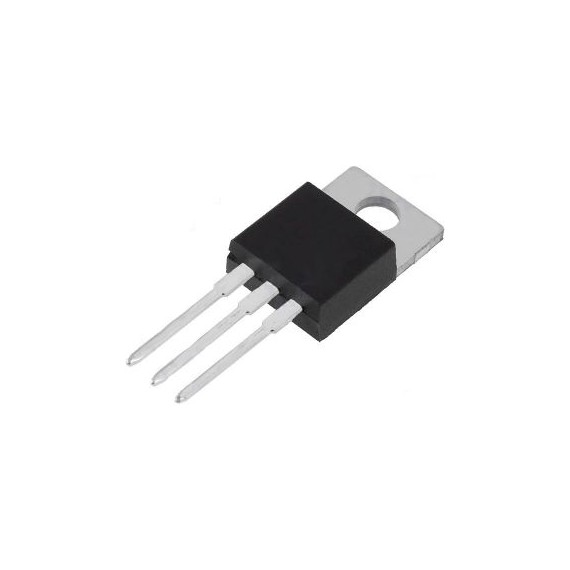

Mosfet N-Channel 16A - IRF530NPBF

05-00053016
Made in: China
Out of Stock
Product out of stock
No stock in retail store
0.65
Without VAT 0.53

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Transistor Type:
N-Channel
Max. Drain Current:
16A
Max. VDS:
100V

EXTRA SPECIFICATIONS

  • Technology: Si
  • Mounting Style: Through Hole
  • Package/Case: TO-220-3
  • Number of Channels: 1 Channel
  • Transistor Polarity: N-Channel
  • Vds - Drain-Source Breakdown Voltage: 100 V
  • Id - Continuous Drain Current: 17 A
  • Rds On - Drain-Source Resistance: 90 mOhms
  • Vgs - Gate-Source Voltage: 20 V
  • Qg - Gate Charge: 24.7 nC
  • Configuration: Single
  • Packaging: Tube
  • Pd - Power Dissipation: 79 W
  • Transistor Type: 1 N-Channel

Dimensions

  • Height: 15.65 mm
  • Length: 10 mm
  • Width: 4.4 mm
