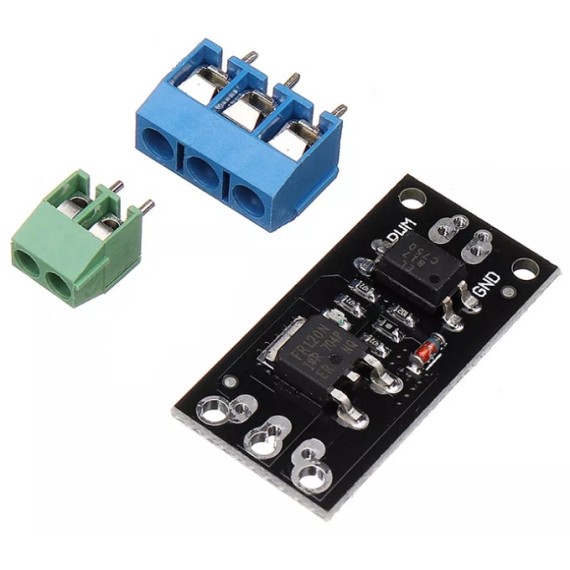

Mosfet Control Module 100V 9.4A - FR120N

19-00090187
CompanyOem
Pre Order
This product will be back in stock on Friday, 16 May 2025
€240
Our quantity discounts:
Quantity
10+
100+
Price
€1.92
€1.68
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference.

Compatible with MCU and Arduino control board, 3V or 5V signal. High level start, low level stop, PWM speed regulation. Widely used to control the start and stop of the motor, solenoid valve and other tributary equipment. The signal input side can be welded to the terminal or pin itself, compatible breadboard. Output can be soldered to the terminal or direct wire.

Module size 33.5x17mm. There are two 2mm diameter screw holes, hole spacing 9.5mm



NOTES

  • Soldering required.
  • The terminals may differ in color and material.
  • The choice is random. Thanks for understanding.

  • Product Type: MOSFET
  • Number of Channels: 1 Channel
  • Transistor Polarity: N-Channel
  • Vds - Drain-Source Breakdown Voltage: 100 V
  • Id - Continuous Drain Current: 9.4 A
  • Rds On - Drain-Source Resistance: 210 mOhms
  • Vgs th - Gate-Source Threshold Voltage: 4 V
  • Vgs - Gate-Source Voltage: 20 V
  • Qg - Gate Charge: 25 nC
  • Minimum Operating Temperature: - 55 C
  • Maximum Operating Temperature: + 175 C
  • Pd - Power Dissipation: 48 W
  • Dimensions: 33.5x16.6x11.5mm



Company
Oem
Warranty
Component, not covered by warranty
G. Weight
0.005kg
Transistor Type
N-Channel
Max. Drain Current
9.4 A
Max. VDS
100 V
