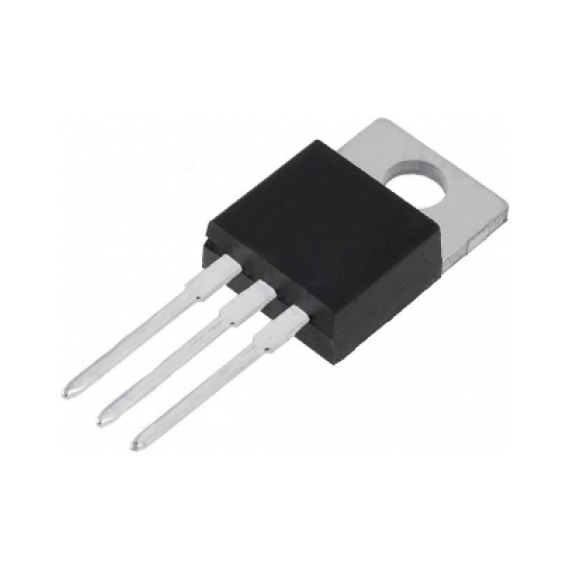

Mosfet N-Channel 62A - IRLB8721PBF

These FETs can switch over 60A and 30V and are TO-220 package so they fit nicely into any breadboard or perfboard.
05-00087216
Made in: China
Out of Stock
Product out of stock
Low stock in store
0.75
Without VAT 0.60

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

When you need to switch a lot of power, N channel MOSFETs are best for the job. These FETs can switch over 60A and 30V and are TO-220 package so they fit nicely into any breadboard or perfboard. Heat sinking is easy with TO-220's, but because of the very low Rds(on) of down to 0.009 ohms (depending on the Vgs - check the datasheet) you can get away with no heatsinking for pretty high loads! The threshhold voltage is also very low, less than 2.5V so you can control it directly from a microcontroller running on 2.8V, 3.3V or 5V logic.

The TO-220 package can dissipate up to 2 Watts without a heat sink (at room temperature). Because it has an Rds of as low as 9 milliohms, that means that you can switch at least 15 Amperes without a heat sink - more if you use PWM.

SPECIFICATIONS

Transistor Type:
N-Channel
Max. Drain Current:
62A
Max. VDS:
30V

EXTRA SPECIFICATIONS

  • Transistor type N-MOSFET
  • Polarisation unipolar
  • Transistor kind HEXFET
  • Drain-source voltage 30V
  • Drain current 62A
  • Power 65W
  • Case TO220AB
  • gate-source voltage 20V
  • On-state resistance 8.7mΩ
  • Junction-to-case thermal resistance 2.3K/W
  • Mounting THT
  • Gate charge 7.6nC
