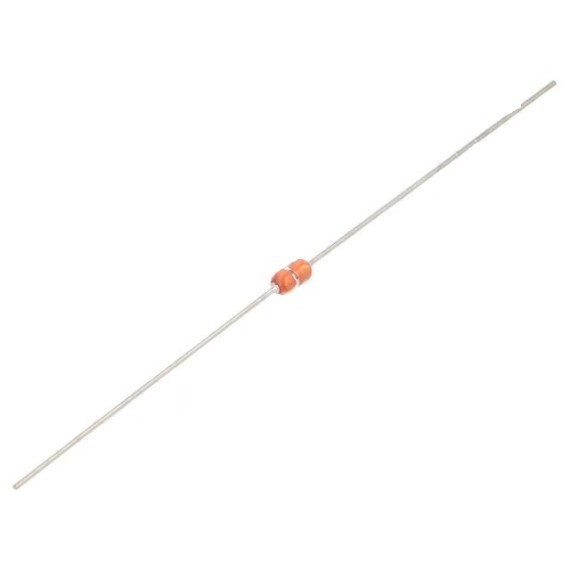

Θερμίστορ NTC 100K - DO35

05-00013514
135-104LAG-J01
ΚατασκευαστήςHoneywell Part Number135-104LAG-J01
Διαθέσιμο
Αποστολή σε 24 ώρες
580
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
135 Series Thermistors are high-quality, hermetically-sealed, glass-encapsulated units in an axial lead package. They cover the full temperature range of -60 °C to 300 °C [-76 °F to 572 °F]. The uniform dimensions are often suited for automated assembly. The tinned copper-clad, steel leads are both solderable and weldable. These rugged sensors are designed for many applications which demand reliability at low cost. Available on tape and reel for automated assembly.
  • Type of sensor: NTC thermistor
  • Resistance: 100kΩ
  • Tolerance: ±10%
  • Case: DO35
  • Consumer electronics
  • PCB temperature sensing
  • Communications
  • Fire detection
  • Computers
  • Low-cost applications with a maximum temperature of 300 ° C [615 °F]
  • Automotive
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
Honeywell
Μικτό Βάρος
0.001kg
Τύπος Αισθητήρα
  • Θερμοκρασίας
