Outdoor Temperature & Humidity Sensor SHT31

25-00016369
SEN0385
CompanyDFRobot Part NumberSEN0385
In Stock
Ships in 24 Hours
2480
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

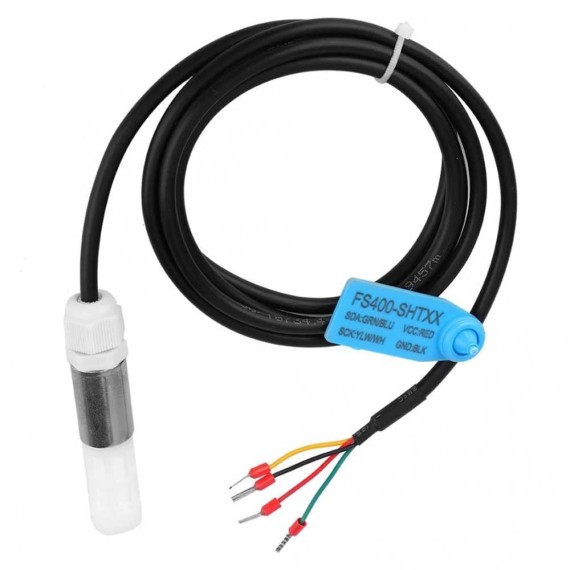

This is an SHT31 Temperature & Humidity sensor housed in a weather-proof enclosure. The sensor is designed to be waterproof so you can use it safely in outdoor projects. Please note that although the sensor is waterproof, it is not suggested to submerge it in water. For in-water measurement, the DS18B20 Sensor is highly recommended.

Thanks to Sensirion’s CMOSens® technology, highly integrated capacitive humidity sensing components, and band-gap temperature sensing components, the SHT31 offers high reliability and long-term stability with low power consumption, fast response, and strong anti-interference ability. The sensor supports I2C communication and is compatible with 3.3V/5V controllers like Arduino, micro: bit, and ESP32.

SHT31 is the standard version of the SHT3x series. It provides humidity accuracy ± 2%RH@0% RH~100% RH (at 25°C), and temperature accuracy±0.2°C@ 0°C ~90°C (typical).

Note: Although the temperature measurement range of the sensor is - 40 ~ 125 ℃, we recommend NOT to place the sensor at a temperature higher than 80 ℃ since its shell is made of PE material.
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
DFRobot
G. Weight
0.08kg
Sensor Type
  • Humidity
  • Temperature
Typical Input Voltage
  • 3-5VDC
Interface
  • Digital
Communication Protocol
  • I2C
