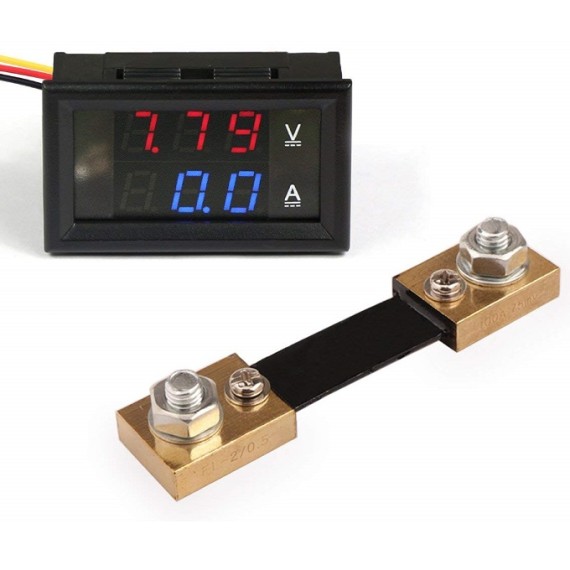

Panel Volt & Current Meter - 0-100V / 0-50A (with Shunt Resistor)

19-00016299
In Stock
Ships in 24 Hours
820
Our quantity discounts:
Quantity
10+
Price
6.56
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Want a Low cost Digital Voltmeter & Ammeter then this is a perfect Module for you.

If you are an Hobbyist or a student or are into electronics R&D then this low cost Voltmeter & Ammeter combo module will be very helpful for your testing.



NOTES

  • For Current mesurement requires Shunt Resistor 50A/75mV.
  • Shunt Resistor 50A/75mV included.

  • Working voltage of Meter itself: DC 4.5 - 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
  • Working current of Meter itself: 8mA
  • Voltage Measuring range: DC 0 - 100V
  • Current Measuring range: DC 0 - 100A (Shunt Resistor 100A/75mV required)
  • Voltage resolution (V): 0.1V
  • Current resolution (A): 0.1A (Measuring current<10A), 1A (Measuring current>=10A)
  • Measure accuracy: 1% (± 1 digit)
  • Display: 0.28" digital tube, Two color blue and red
  • Refresh rate: about 300mS / times
  • Operation Temp: -10oC-+65oC
  • Dimension: 48x29x21mm
  • Mounting cutout: 45.5 x 26.5mm

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
G. Weight
0.1kg
Meter Type
  • Amperometer
  • Voltmeter
Measurement
  • DC current
  • DC voltage
DC voltage measuring range
0-100V
DC current measuring range
0-50A
