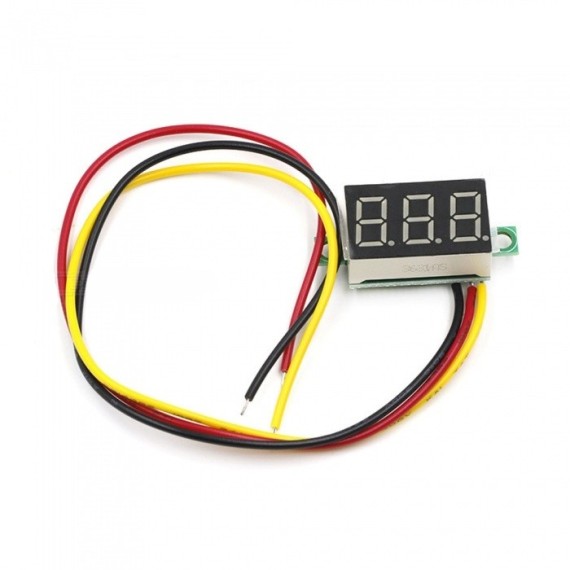

Βολτόμετρο DC 3.5-30V Τριών Καλωδίων - Κόκκινο 0.36"

από OEM
The voltmeter is small, only 0.36 inches, range DC 3.5-30V, 3-wire generic products, to break the routine voltmeter, is the latest design, can work...
19-00010787
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
2.90
Χωρίς ΦΠΑ 2.34
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 2.32

ΠΕΡΙΓΡΑΦΗ

The voltmeter is small, only 0.36 inches, range DC 3.5-30V, 3-wire generic products, to break the routine voltmeter, is the latest design, can work directly on 5V, 9V, 12V, 24V and other circuits, without regulation.

With three wiring, easy access to car / battery car / motorcycle car line, with reverse polarity protection function, line reversed not burn.

Used to monitor battery voltage, grasp the battery voltage state, it can also be used for other products voltage measurement applications.

ΣΗΜΕΙΩΣΕΙΣ

  • Three-line voltage range 0-100V, but also for the use of second-line voltage is within 30V, otherwise there is a danger of burning.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.007kg
Χώρα Προέλευσης:
Κίνα
Τύπος Οργάνου:
  • Βολτόμετρο
Είδη μέτρησης:
  • DC τάση (V)
Εύρος μέτρησης DC τάσης:
3.5-30V

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating voltage: 4.0-30V (with a reverse polarity protection function)
  • Detection voltage: 0.0-100V
  • Operating Current: <20mA
  • Display: 0.36" LED
  • Color: Red
  • Dimensions: 23x14x9mm
  • Installation hole: 32.6x14mm
  • Measurement rate: ≥200mS / times
  • Accuracy: 3‰
  • Extreme working conditions
  • Low operating voltage: +4.0V
  • Maximum working voltage: +30V
  • Working temperature: -10...65°C
  • Humidity: 10 to 80% (non-condensing)
  • Working pressure: 80 ~ 106kPa
  • Sun exposure: No direct exposure
