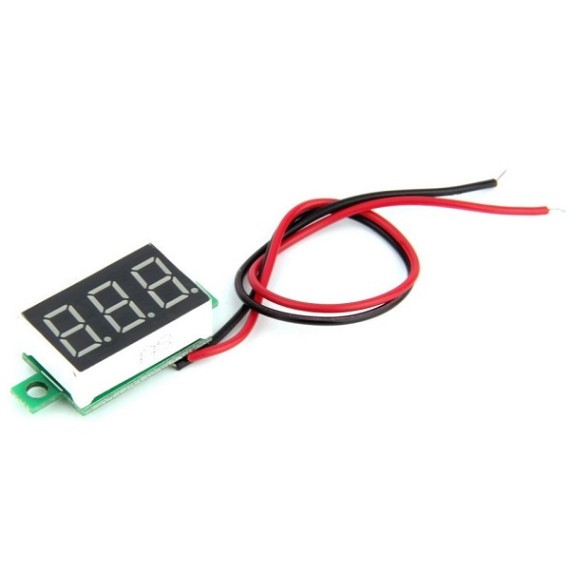

Βολτόμετρο DC 4.7-30V (2 Τρόποι Λειτουργίας) - Μπλε 0.36"

από OEM
This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up. Simply connect the red wire to the positive supply, and...
19-00010991
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
2.90
Χωρίς ΦΠΑ 2.34
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 2.32 2.03

ΠΕΡΙΓΡΑΦΗ

This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up. Simply connect the red wire to the positive supply, and black to negative ground. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 0.36" tall 7-segment display. It works from 4.7V up to 30V and is reverse-polarity protected so it will be good for nearly any electronic project! The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice blue, which we found very readable.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.006kg
Χώρα Προέλευσης:
Κίνα
Τύπος Οργάνου:
  • Βολτόμετρο
Είδη μέτρησης:
  • DC τάση (V)
Εύρος μέτρησης DC τάσης:
4.7-30V

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Display color: Blue
  • Two-wire Measurement range: DC 4.7~32V
  • Working Current:< 23mA
  • Working Temperature: -10C-65C
  • Minimum input voltage: DC 4.7V(Lower than 4.7V, the brightness will be weakened, but this will not affect the accuracy of measurement)
  • Maxmum input voltage: DC 32V(Higher than this voltage is has a risk of overburning) Permissible error: 1%(±1 digit)

  • It can work with 2 or 3 wires.
  • Some batches come preinstalled with three wires.
