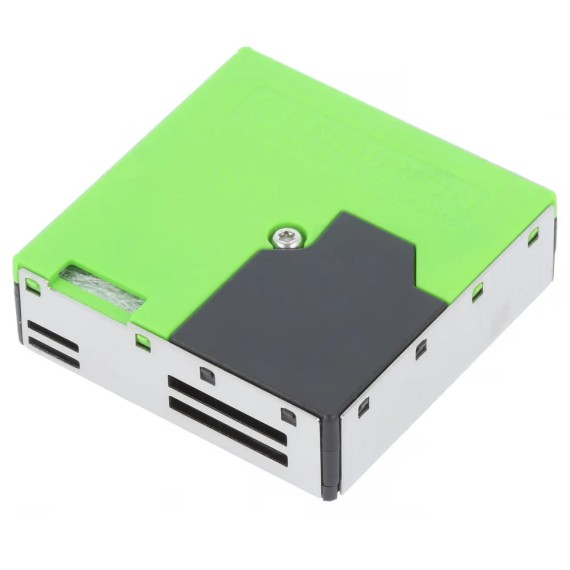

Particulate Matter Sensor SPS30

από Sensirion
With this new particulate matter sensor, Sensirion expands its range of environmental sensing solutions and opens up a new dimension in indoor and outdoor...
05-00011594
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Sensirion
Part Number: 1-101638-10
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση 1 με 3 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
44.90
Χωρίς ΦΠΑ 36.21
+

ΠΕΡΙΓΡΑΦΗ

With this new particulate matter sensor, Sensirion expands its range of environmental sensing solutions and opens up a new dimension in indoor and outdoor air quality applications.

The Sensirion Particulate Matter Sensor SPS30 is a compact, high quality, optical particle sensor that uses laser scattering and Sensirion's innovative contamination resistance technology to achieve superior binning and particle measurement. This sensor allows users to measure mass concentration and number of particles of 1 µg/m^3, 2.5 µg/m^3, 4 µg/m^3, and 10 µg/m^3.

The compact form factor, measuring just under 41x41x12mm, combined with a sensor lifetime over 8 years and a self cleaning procedure, makes the SPS30 the perfect sensor for projects in difficult to access locations. The SPS30 has a five pin interface that can communicate over two different protocols: UART and I2C. The SPS30 requires a 5V power supply, but can work with 3.3V and 5V microcontrollers. The logic is 5V and 3.3V tolerant.

Sensirion has written drivers for both the UART protocol and I2C. Unfortunately we've found the I2C is limited to only mass concentrations (not number concentrations) using the Arduino platform. So if you plan to use this sensor with an Arduino, use the UART interface. Both interfaces are described in their datasheet.

  • Unique long-term stability
  • Advanced particle size binning
  • Superior precision in mass concentration and number concentration sensing
  • Small, ultra-slim package
  • Fully calibrated digital output

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Sensirion
Part Number:
1-101638-10
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Σκόνης
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
60mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C
  • UART

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Mass concentration precision:
    • ±10 μg/m3 @ 0 to 100 μg/m3
    • ±10 % @ 100 to 1000 μg/m3
  • Mass concentration range: 1 to 1000 μg/m3
  • Mass concentration resolution: 1 μg/m3
  • Particle detection size range:
    • Mass concentration: PM1.0, PM2.5, PM4 & PM10
    • Number concentration: PM0.5, PM1.0, PM2.5, PM4 & PM10
  • Lower limit of detection: 0.3μm
  • Minimum sampling interval: 1sec (continuous mode)
  • Lifetime: > 10 years operating continuously 24h/day
  • Dimensions: 40.6x40.6x12.2mm
  • Operating temperature range: -10 to +60 °C
  • Storage temperature range: -40 to +70 °C
  • Interface: UART, I2C
  • Supply voltage: 4.5 - 5.5V
  • Average supply current @ 1 Hz measurement rate: 55 mA

ΔΥΝΑΤΟΤΗΤΕΣ

Technology

Proprietary contamination-resistance technology and long-lasting components.



Laser-based scattering principle and advanced algorithms.

Accurate high-resolution particle size binning.

Small, ultra-slim package.

Fully calibrated digital output for PM number and mass concentration values.
UART and I2C interfaces.

Benefits

Lifetime of more than ten years while operating continuously for 24 hours/day.
No need for cleaning and/or maintenance, thus avoiding problems related to sensor drift or malfunction.

Precise measurements for different types of dust and other particles.

Enables new types of use cases and device-specific actions based on detected particle composition.

Easy to integrate into devices where size and space are limited.

Simple interfacing and read-out of multiple outputs.
