e-Paper Display Module 2.9" 296x128 (Black-White)

31-00012563
WHS12563
Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi
Waveshare Universal e-Paper Raw Panel Driver HAT
Waveshare Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth
Panel Case for e-Paper 2.9"

ΚατασκευαστήςWaveshare Part NumberWHS12563
Διαθέσιμο
Αποστολή σε 24 ώρες
€1380
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€13.11
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
WiFi e-Paper Bundle 2.90"
Τιμή για όλα μαζί
Κερδίζετε έκπτωση: €1.66
€33.20 €31.54

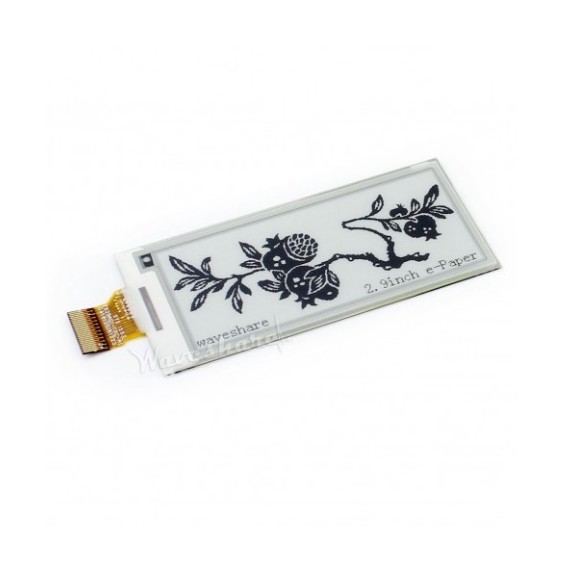

This is an E-Ink raw display, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.



  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)



ΣΗΜΕΙΩΣΕΙΣ

  • This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 2.9inch e-Paper Module

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 36.7×79.0×1.05mm
  • Display size: 66.89×29.05mm
  • Dot pitch: 0.138×0.138
  • Resolution: 296×128
  • Display color: black, white
  • Grey level: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
Κατασκευαστής
Waveshare
Part Number
WHS12563
Χρώμα
  • Μαύρο & Λευκό
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.006kg
Μέγεθος Οθόνης
2.9 "
Ανάλυση
296x128
Οθόνη Aφής
Όχι
Διασύνδεση
  • SPI
