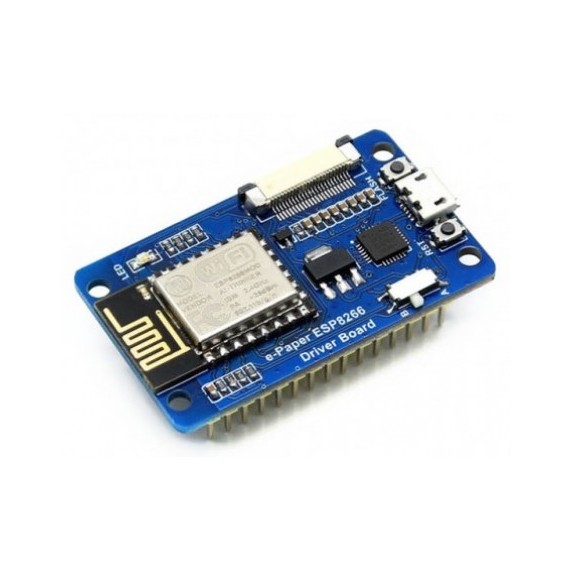

Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi

Waveshare, 14138
31-00014138
This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display image from PC/smart phone via WiFi...
16.90
Available
for online order
+
Add to wish list
Διαθεσιμότητα Καταστήματος Αθήνας
Low Availability

This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display image from PC/smart phone via WiFi conveniently.

Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.

Company:
Waveshare
MPN:
14138
Made in:
China
Oparating Voltage:
5VDC
Type:
Display Driver
Input Voltage:
3 - 6VDC
Oparating Current:
100mA
Interface:
  • Digital
Interface:
  • SPI
  • e-Paper panels in the photos are NOT included.
  • WiFi protocol: 802.11b/g/n
  • Interface: 3-wire SPI, 4-wire SPI (default)
  • Operating voltage: 5V
  • Operating current: 50mA ~ 100mA
  • Outline dimension: 29.57mm x 48.26mm
  • Mounting holes size: 2.9mm
  • Onboard ESP8266, supports Arduino development
  • Provides HTML host code
    • Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
    • Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
    • Easy to be integrated into wireless applications
  • Comes with e-Paper driver (open source)
  • Comes with development resources and manual
e-Paper ESP8266 Driver Board dimensions
  1. 1x e-Paper ESP8266 Driver Board
  2. 1x e-Paper Adapter
  3. 1x 24PIN FFC
