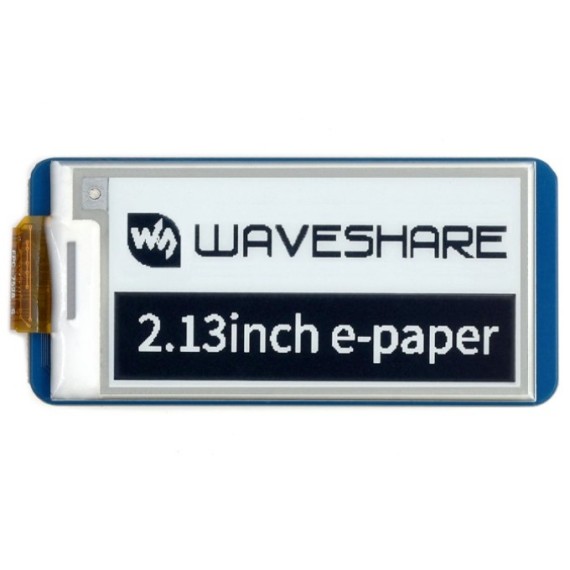

Pico Display e-Paper 2.13" 250x122 (Black-White)

31-00019406
ΚατασκευαστήςWAVESHARE
Διαθέσιμο
Αποστολή σε 24 ώρες
€1990
WAVESHARE
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€17.91
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

2.13" E-Paper Module For Pico
Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...

Features:

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Pinout Definition

ΣΗΜΕΙΩΣΕΙΣ

  • Operating Voltage: 3.3V
  • Interface:
    • 3-wire SPI
    • 4-wire SPI
  • Outline Dimensions: 65.00x30.50mm
  • Display Size: 48.55x23.70mm
  • DOT Pitch: 0.194x0.194mm
  • Resolution: 250x122 pixels
  • Display Color: Black, White
  • Grey Scale: 2
  • Partial Refresh Time: 0.3s
  • Full Refresh Time: 2s
  • Refresh Power: 26.4mW (typ.)
  • Standby Current: <0.01uA (almost none)
  • Viewing Angle: >170°
Κατασκευαστής
WAVESHARE
Μικτό Βάρος
0.022kg
Μέγεθος Οθόνης
2.13 "
Ανάλυση
250x122
Χρώμα
  • Μαύρο & Λευκό
Οθόνη Aφής
Όχι
Διασύνδεση
  • SPI
Τύπος HAT
  • Display
