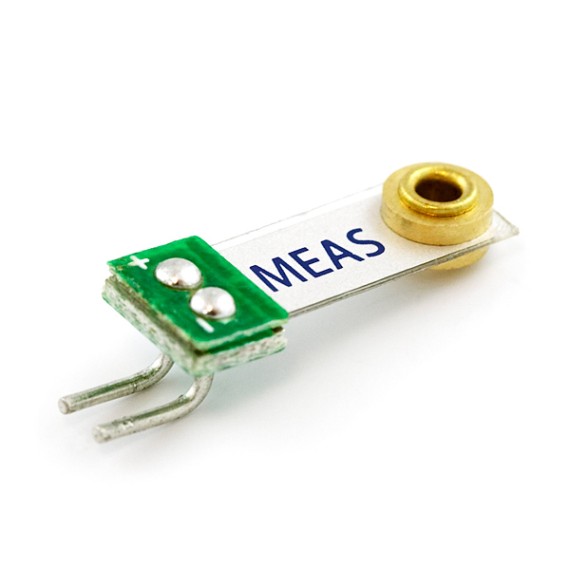

Piezo Vibration Sensor - Small Vertical

by MEAS
The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies.
03-00009199
Gross Weight: 0kg
Company: MEAS
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Low stock in store
7.50
Without VAT 6.05
+
WISHLIST COMPARE

DESCRIPTION

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

SPECIFICATIONS

Sensor Type:
  • Vibration
Interface:
  • Analog
Communication Protocol:
  • Without

NOTES

SPECIFICATIONS

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • Breadboard friendly leads
