Rail-Μount Serial Server RS232/RS485 to RJ45 with Dual Ethernet Ports

Κωδικός:

31-00025108

Part Number: RS232 RS485 TO ETH (B)

ΚατασκευαστήςWaveshare Part NumberRS232 RS485 TO ETH (B)

Διαθέσιμο

Αποστολή σε 24 ώρες

€39⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€35.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

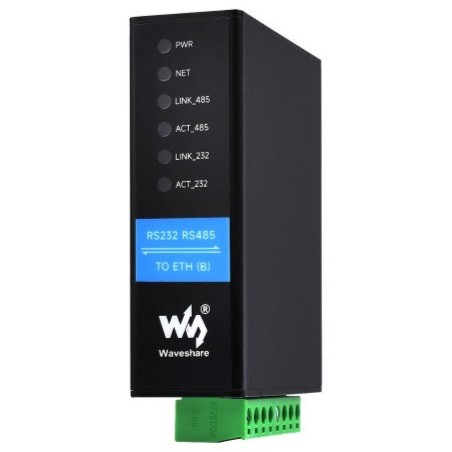

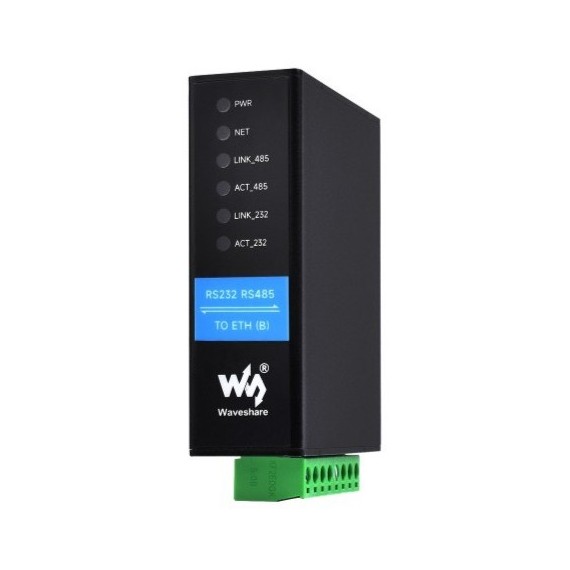

Industrial Isolated RS232 RS485 To RJ45 Ethernet Serial Server
Dual Serial Ports To Ethernet, Modbus/MQTT/JSON Support, Rail-mount Metal Case

This is a dual serial ports device data acquisitor / IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc. The other one Ethernet port can be used as a network switch or for cascading. Provides two power supply methods: DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.

Primary Function

Bi-Directional Transparent Data Transmission Between Dual Serial Ports And Ethernet

Multi Power Supply Options

Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal And DC Power Port For Power Supply, DC 6~45V
Wide Voltage Range Input

Support Ethernet Port Cascade

Onboard 2-Ch Ethernet Ports For Communication And Cascade
Either One Can Be Used For Dual Serial Server Network Communication, While The Other One Can Be Used For Cascading Or Communication With Other Devices

* Note: Each module in the cascade needs to be powered individually. The working current of the module is 12V/150mA (MAX) and can be cascaded up to 8.

Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

Interface Introduction

Product Type: Serial server, Modbus Gateway, MQTT Gateway
Basic Function: Bi-directional transparent data transmission between RS232 and RS485 to Ethernet
Communication interface: RS232 port × 1, RS485 port × 1, Ethernet port × 2
Power supply: DC 5.5 power port, 6 ~ 45V DC screw terminal
Isolation Protection: Power isolation, Signal isolation
Dimensions: 78.0 × 72.5 × 24.2 mm
Weight: 0.145 kg

COMMUNICATION

Ethernet:
- RJ45
- 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port: Isolated RS232 and RS485 (the 2 channels can receive and transmit independently at the same time)

SERIAL SPECIFICATION

Baudrate: 300 ~ 115200 bps
Parity bit: none, odd, even, mark, space
Data bit: 5 ~ 9 bits
Flow control: N/A

SOFTWARE

Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration: host, web browser, device management functions library
Communication method: TCP/IP direct communication, VCOM
Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast

ENVIRONMENT REQUIREMENT

Operating temperature: -40℃ ~ 85℃
Humidity range: 5% ~ 95% relative humidity

Outline Dimensions

Note: The power supply is not included, it is recommended to use with a 12V Power Adapter

Modbus Gateway Support
Suitable For Modbus Networking Upgrade, Can Be Used With Specific Configuration Software

Multi Communication Modes
Supports TCP Server / TCP Client / UDP Mode / UDP Multicast

MQTT/JSON To Modbus
More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Multi Hosts Roll-Polling Support
Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices

User-Defined Heartbeat/Registration Packet
Easy For Cloud Communication And Device Identification

NTP Protocol Support
Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods
Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

Multiple Protection, Safe And Stable
Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance

Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling
