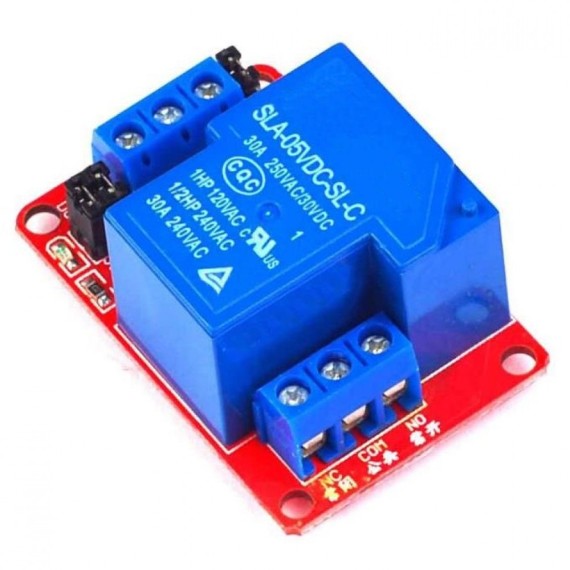

Relay Module - 1 Channel 5V 30Α

από OEM
The Single Channel 5V 30A Relay Module Power Failure Relay is a 1-channel relay module board with LED indicators, It can be controlled by microcontrollers...
19-00016281
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Εξαντλημένο
Το προϊόν δεν είναι διαθέσιμο
Χωρίς απόθεμα στο φυσικό κατάστημα
3.60
Χωρίς ΦΠΑ 2.90

Συναινώ ώστε η εταιρεία (GRobotronics) να προσθέσει την διεύθυνση ηλεκτρονικού μου ταχυδρομείου στην λίστα ώστε να λάβω ενημέρωση όταν το προϊόν θα είναι ξανά διαθέσιμο. Μόλις το προϊόν γίνει ξανά διαθέσιμο θα λάβω αυτόματα ενημέρωση στο email αυτό και αμέσως θα αφαιρεθεί από την συγκεκριμένη λίστα.

Το email σου θα χρησιμοποιηθεί αποκλειστικά για τον σκοπό αυτό και καμία άλλη ενημέρωση δεν θα λάβεις. Θα είναι ορατό μόνο από συγκεκριμένους εξουσιοδοτημένους υπαλλήλους της εταιρείας.

Έχετε το δικαίωμα σε περίπτωση κατά την οποία θεωρείτε ότι η επεξεργασία που γίνεται δεν είναι σύμφωνη με τα ανωτέρω να αναζητείτε την προστασία της Αρχής Προσωπικών Δεδομένων και να ζητήσεις να διαγράψουμε ή να μεταβάλλουμε τα δεδομένα σου. Είμαστε υποχρεωμένοι σύμφωνα με τον κανονισμό της ΕΕ για την Προστασία των Γενικών Προσωπικών Δεδομένων να σε ενημερώσουμε για αυτό το δικαίωμα. Έχετε την δυνατότητα να επικοινωνείτε όποτε επιθυμείτε με την εταιρεία ώστε να ενημερωνόσαστε σχετικά με τα προσωπικά σας δεδομένα στο email [email protected]

ΑΓΑΠΗΜΕΝΑ ΣΥΓΚΡΙΣΗ

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

The Single Channel 5V 30A Relay Module Power Failure Relay is a 1-channel relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V.

The relay module uses an authentic quality mechanical relay and the industry’s top-quality subminiature two-way isolation optical coupling which gives you a strong anti-interference ability, and stable performance.

The user can choose the relay control level, can be a high level off, also can be low level and off. The Single-channel 5V 30A Relay Module Power Failure Relay contains a limited flow resistance, can directly use the power supply is negative control, you can also use the MCU I/O control.

The relay module equips a power indicator light (red), 1 road relay status indicator light (blue). With this relay, you can easily control electrical appliances, lights, etc.

Fault-tolerant design, even if the control line is broken, the relay will not move.

Module interface:

  • DC+: DC power supply positive pole
  • DC-: DC power supply negative pole
  • IN: signal triggering pin
  • JD+: relay control voltage positive
  • JD-: relay control voltage negative

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • Ρελέ
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τάση Πηνίου:
5VDC
Μέγιστο Φορτίο:
30A
Τύπος / Διαμόρφωση Επαφών:
  • SPDT
  • Module

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Voltage: 5VDC
  • Current: 30A
  • The static current: 5mA
  • Working Current: 190mA
  • Trigger current: 2 to 4mA
  • AC Load Voltage: 250V @30A
  • DC Load Voltage: 30V @30A
  • Dimensions: 50x33x24mm
  • Weight: 36g

ΔΥΝΑΤΟΤΗΤΕΣ

  • Optical coupling isolation, driving ability is strong, stable performance; Trigger current is 5mA
  • The module can be set high level or low-level trigger by the jumper
  • Rated current of the interface is 16A
  • DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal.
  • High and low-level trigger mode selection. Jumper and L pin connection, IN pin, is low-level trigger Jumper and H pin connection, IN pin, is the high-level trigger.
