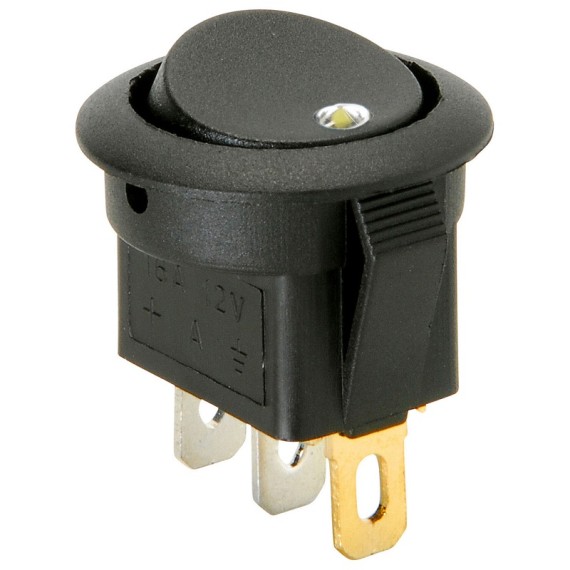

Rocker Switch - Round w/ White LED

by OEM
These panel-mounting rocker switches have built-in indicator lights to let you know when your switch is engaged. They mount into a 20.2mm diameter hole and...
29-00015004
Gross Weight: 0kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
Available in store
0.80
Without VAT 0.65

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

These panel-mounting rocker switches have built-in indicator lights to let you know when your switch is engaged. They mount into a 20.2mm diameter hole and are rated up to 16A @ 12v. These simple SPST on-off switches have three terminals, the two that you would normally see plus a ground tab for the white LED lamp inside. Although these are rated for 12v, the LED works with as little as 5V.

SPECIFICATIONS

Contacts configuration :
  • SPST-NO
Switching method :
ON-OFF
DC or AC Rating:
16A / 12VDC
Leads for:
Flat Terminal

SPECIFICATIONS

  • White LED Indicator
  • SPST on-off
  • Rated up to 16A @ 12v
  • 20.2mm Diameter Mounting Hole
