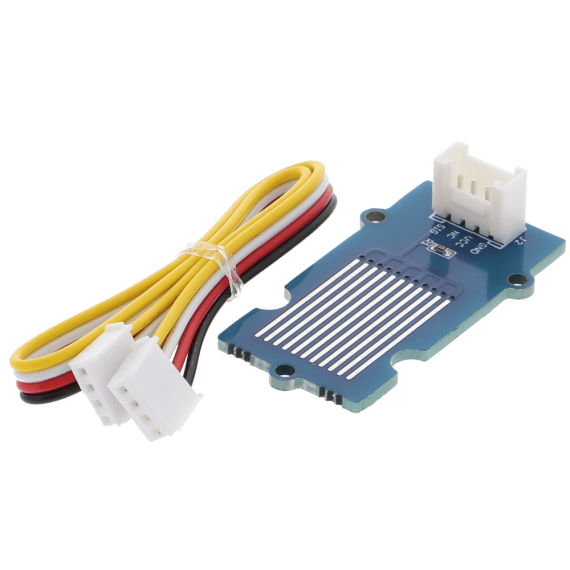

Seeed Grove - Water Sensor (RC0603JR)

SKU:

32-00018303

Part Number: 101020018

CompanySeeed Studio Part Number101020018

In Stock

Ships in 24 Hours

€3⁶⁰

+ −

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

The Water Sensor module is part of the Grove system. It indicates whether the sensor is dry, damp or completely immersed in water by measuring conductivity. Grove - Water Sensor can detect the presence of water using exposed PCB traces. The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace. Believe it or not, this circuit will work with the digital I/O pins of your Arduino or you can use it with the analog pins to detect the amount of water induced contact between the grounded and sensor traces.

Features

Precise measurement: The sensor measures the number of water droplets/water flow through a series of exposed parallel wire tracks to determine the water level.
Digital output: It's easier to read the water/no water state by judging high and low levels.
Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove.

Applications

Rainfall detecting
Liquid leakage
Tank overflow detector

Included in the package

1 x Grove Water Sensor
1 x Grove Cable

Technical data

Item	Min	Typical	Max	Unit
Working Voltage	4.75	5.0	5.25	V
Current	<20	<20	<20	mA
Working Temperature	10	-	30	℃
Working Humidity (without condensation)	10	-	90	%
Dimensions	40mm x 20mm x 12mm
