Servo Gear - Hitec (20T, Metal)

από SERVOCITY
These servo gears are made specifically to fit a Hitec C1 servo spline, allowing you to mate other gears to your servo.
17-00615282
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 615282
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
18.60
Χωρίς ΦΠΑ 15.00
+

ΠΕΡΙΓΡΑΦΗ

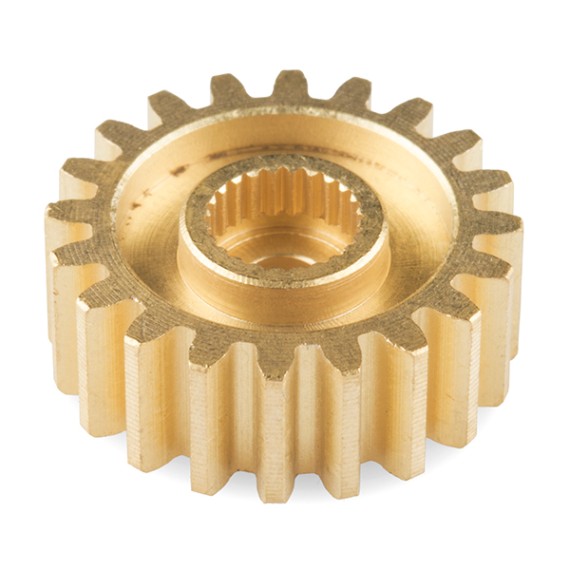

These servo gears are made specifically to fit a Hitec C1 servo spline, allowing you to mate other gears to your servo. They have 20 teeth with a gear pitch of 32P, an outer diameter of 0.688”, and utilize the C1 Hitec servo spline.


Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
615282
Μικτό Βάρος:
0.00907kg
Χώρα Προέλευσης:
Κίνα
Τύπος Γραναζιού:
  • Servo Gear
Αριθμός Δοντιών:
20
Διάκενο Δοντιών:
32P
Εσωτερική Διάμετρος:
3mm
Εξωτερική Διάμετρος:
17.47mm
Servo Standar
:
24T (Hitec)
Υλικό:
Brass

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Teeth - 20T at 32P
  • OD - 0.688”
  • C1 Hitec Spline

ΑΡΧΕΙΑ
